- Part Number CPC7524BTR
- Manufacturer LITTELFUSE
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages

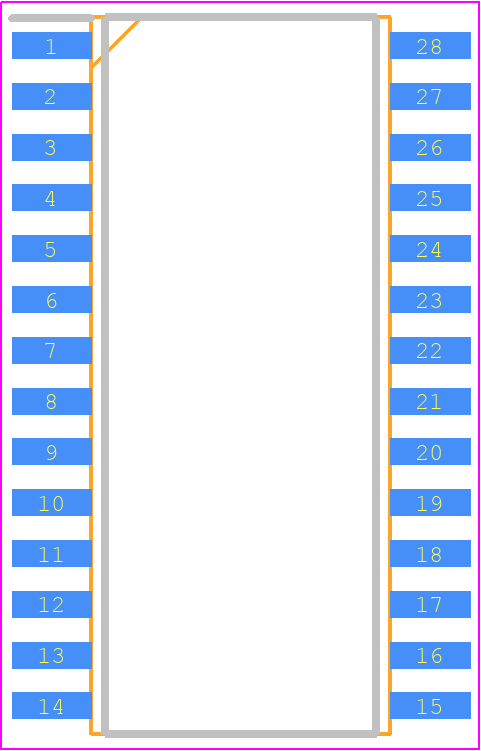

- Footprint Name Small Outline Packages - CPC7524BTR
- Released Date Jun 3, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CPC7524BTR Details
-
Manufacturer Part Number:
CPC7524BTR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
0
-
Analog IC - Other Type:
SPST
-
JESD-609 Code:
e3
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
-
Terminal Finish:
TIN
Trust Checks
Community Provided
System Verified
Community Approved
CPC7524BTR Overview

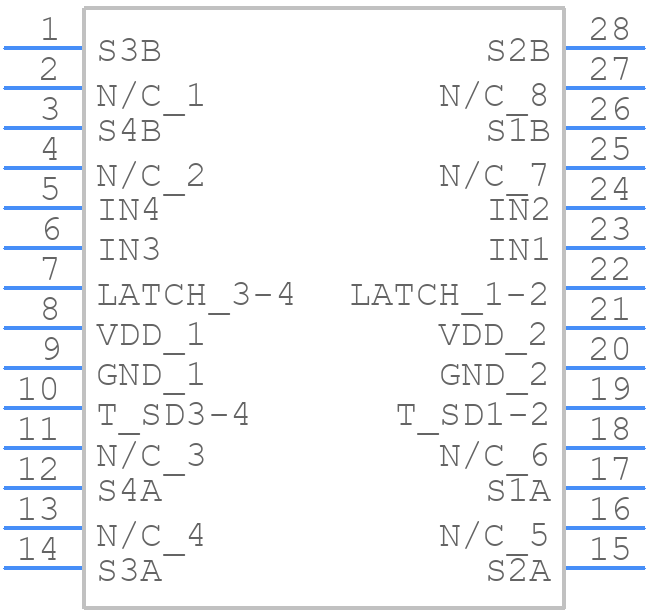

Use the download button to access the CPC7524BTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPC75,
or try a keyword search, such as Other Signal Circuits
