The recommended PCB layout for CPC9909NE involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure the reliability of CPC9909NE in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermally conductive interface material to improve heat transfer between the device and the heat sink.
The maximum surge current that CPC9909NE can withstand is not explicitly stated in the datasheet. However, according to Littelfuse's application notes, the device can withstand surge currents up to 100 A for 10 ms without damage. It is recommended to consult with Littelfuse's technical support for specific application requirements.
Yes, CPC9909NE can be used in parallel to increase the current rating. However, it is recommended to ensure that the devices are properly matched and that the current sharing is balanced to avoid overheating and reduce the overall reliability of the system.
The recommended fuse type and rating for CPC9909NE depend on the specific application requirements. However, as a general guideline, a fast-acting fuse with a rating of 5-10 A is recommended to protect the device from overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CPC9909NE Overview

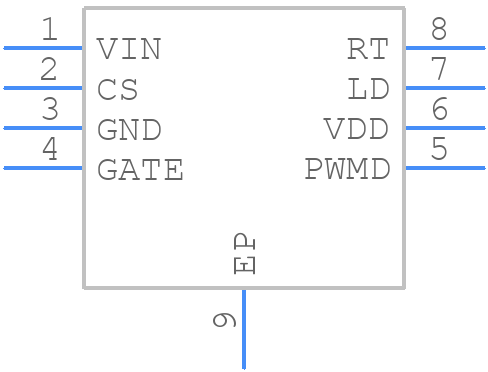

Use the download button to access the CPC9909NE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPC99,
or try a keyword search, such as Display Drivers
