CPDA10R5V0P-HF - Comchip Technology

Description: ESD Suppressors / TVS Diodes 5V BI-DIRECTION PROTECTION DIODE

Download CPDA10R5V0P-HF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

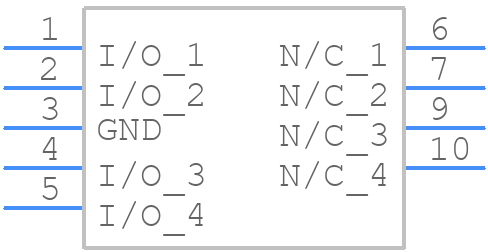

Symbol
CPDA10R5V0P-HF - Comchip Technology - PCB symbol
click to zoom
PCB Footprints
CPDA10R5V0P-HF - Comchip Technology PCB footprint - Other - Other - CPDA10R5V0P-HF-2
click to zoom
3D Models
CPDA10R5V0P-HF - Comchip Technology - 3D model - Other - CPDA10R5V0P-HF-2
click to zoom

CPDA10R5V0P-HF Details

  • Manufacturer Part Number:

    CPDA10R5V0P-HF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DFN10P, 9 PIN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Comchip Technology Corporation Ltd

  • YTEOL:

    0.4

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Case Connection:

    CATHODE

  • Clamping Voltage-Max:

    13 V

  • Configuration:

    COMMON ANODE, 5 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N9

  • Non-rep Peak Rev Power Dis-Max:

    60 W

  • Number of Elements:

    5

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

CPDA10R5V0P-HF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CPDA10R5V0P-HF is a rectangular pad with a size of 2.5mm x 1.6mm, with a 0.5mm radius corner and a 0.2mm solder mask clearance.
  • To ensure reliability in high-temperature applications, it is recommended to follow the recommended operating temperature range of -40°C to 125°C, and to use a thermal interface material with a thermal conductivity of at least 1 W/m-K.
  • The maximum allowable voltage derating for the CPDA10R5V0P-HF is 10% of the rated voltage, but it is recommended to consult with the manufacturer for specific derating guidelines.
  • Yes, the CPDA10R5V0P-HF is suitable for high-frequency applications up to 1 GHz, but it is recommended to consult with the manufacturer for specific guidance on impedance matching and layout considerations.
  • The recommended storage condition for the CPDA10R5V0P-HF is in a dry, cool place with a temperature range of 20°C to 30°C and a relative humidity of 50% to 70%.
