OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.1 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
100 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.12 s
Width:
36.8 mm
CQB100W-24S24 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and minimizing the loop area of the input and output currents. For thermal management, ensure good airflow around the converter, and consider adding a heat sink or thermal interface material to the device.
To ensure EMC, follow proper PCB design and layout guidelines, use a metal enclosure or shielded case, and add EMI filters or common-mode chokes to the input and output lines as needed. Additionally, consider conducting EMC testing and certification according to relevant industry standards.
The derating curve is typically provided by the manufacturer upon request. However, as a general guideline, the output power of the DC-DC converter may need to be derated by 1-2% per degree Celsius above the recommended operating temperature range to ensure reliable operation and prevent overheating.
Yes, the CQB100W-24S24 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with the manufacturer or a qualified engineer for guidance on implementing such a configuration.
The CQB100W-24S24 is commonly used in industrial control systems, telecommunications, data centers, and other high-reliability applications where a wide input range and high-power density are required. It is also used in medical, aerospace, and defense applications where high-quality and ruggedized power conversion is necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CQB100W-24S24 Overview

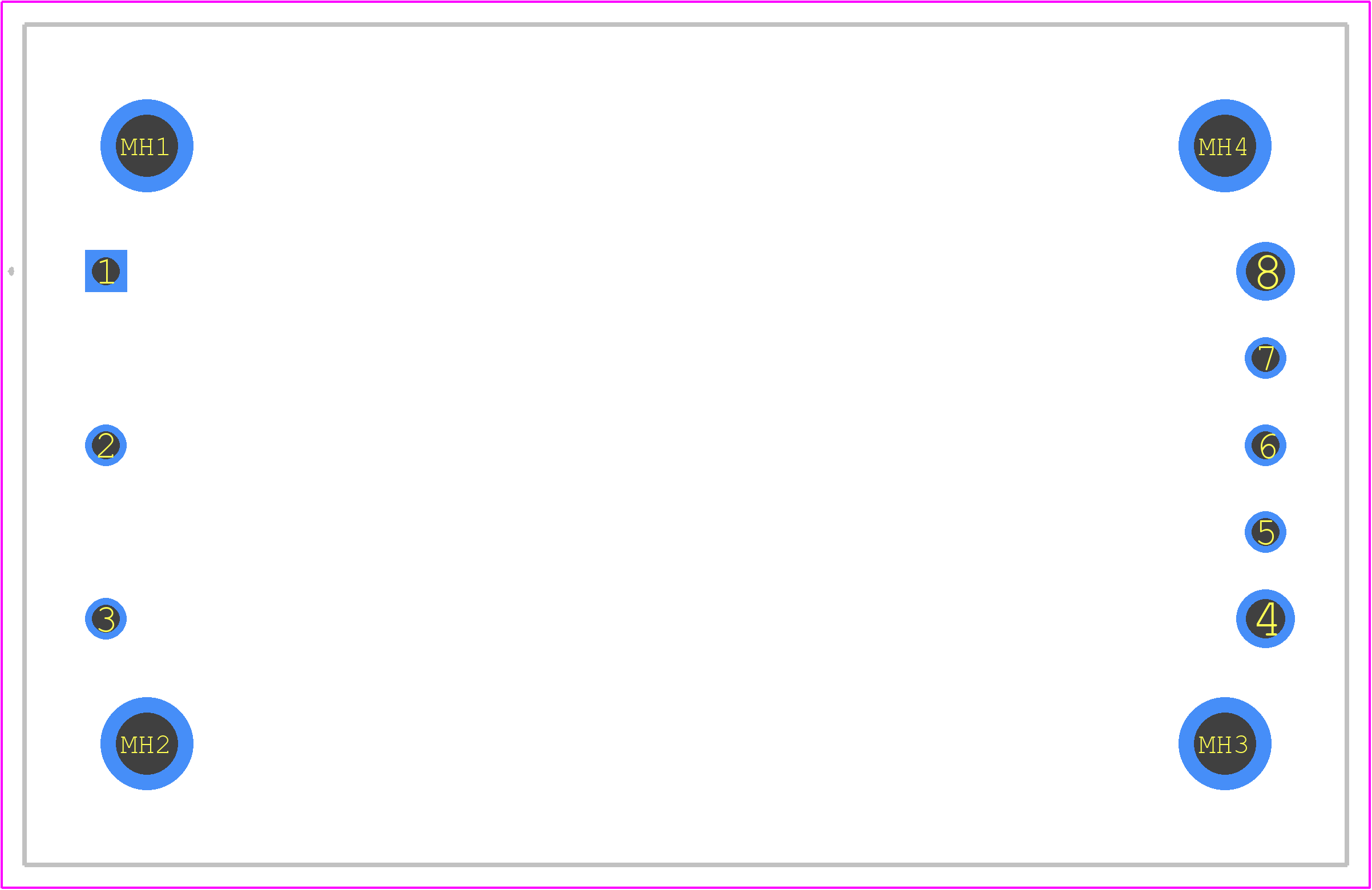

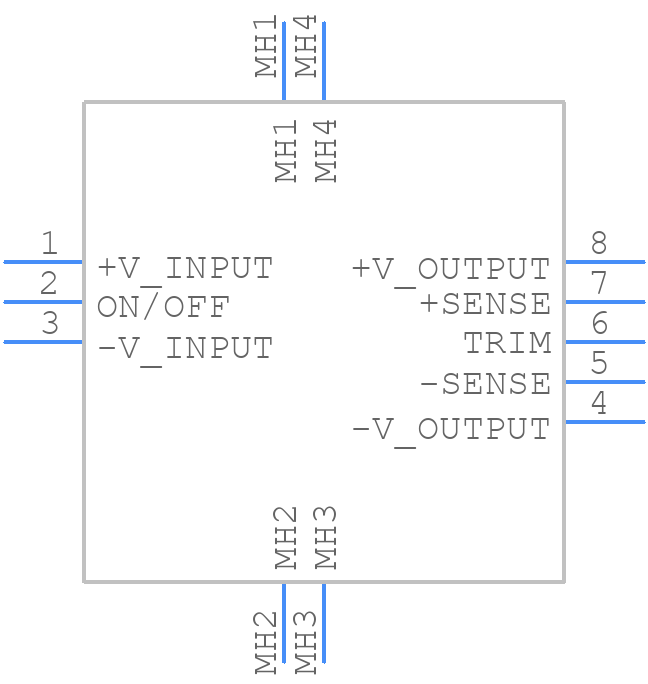

Use the download button to access the CQB100W-24S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CQB10,
or try a keyword search, such as Power Supply Modules
