CQB150-300S24 - Cincon

Description: Isolated DC/DC Converters - Through Hole DC-DC Converter, Quarter Brick, 150 Watt, 2:1 Input Range, 180-425VAC Input, 24VDC Output, 3300uF, 88.5% Efficiency

Download CQB150-300S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

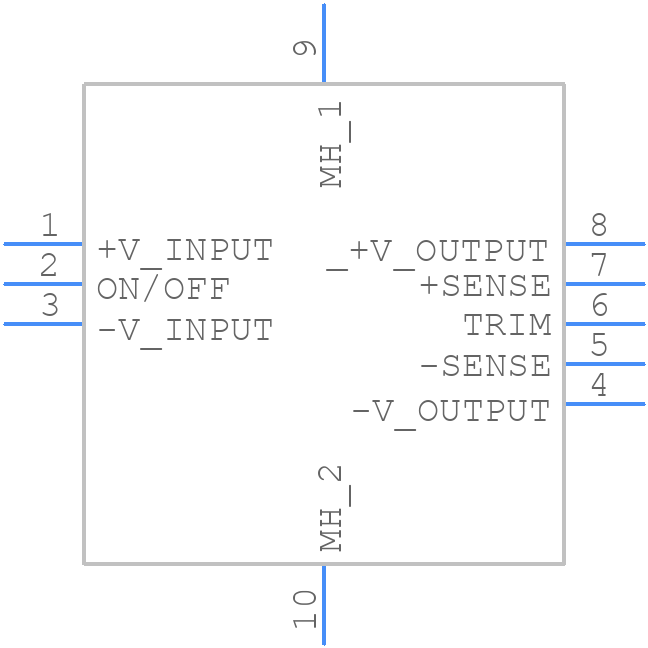

CQB150-300S24 - Cincon - PCB symbol
click to zoom
PCB Footprints

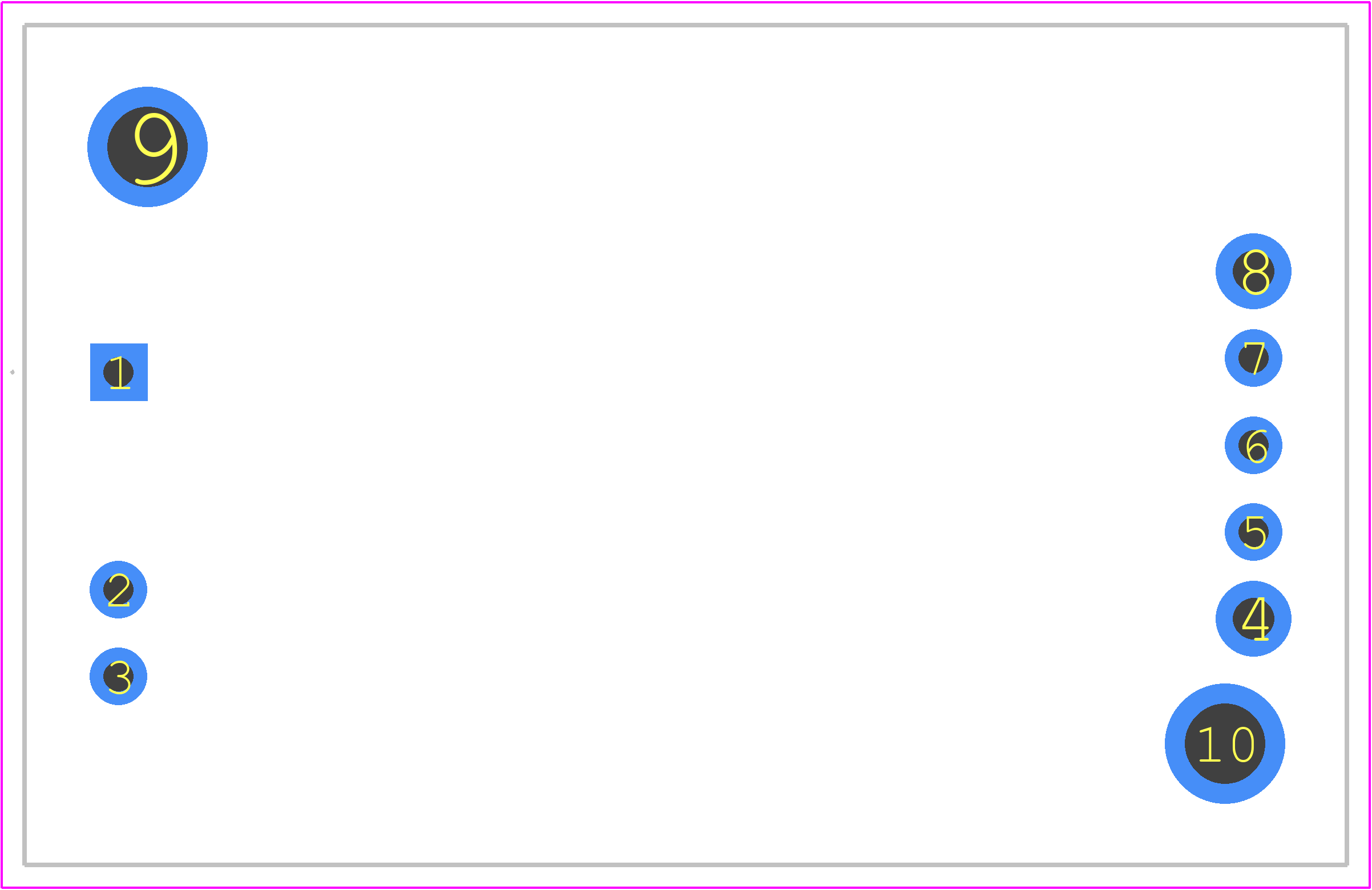

CQB150-300S24 - Cincon PCB footprint - Other - Other - CQB150-300S24-1
click to zoom
3D Models
CQB150-300S24 - Cincon - 3D model - Other - CQB150-300S24-1
click to zoom

CQB150-300S24 Details

  • Manufacturer Part Number:

    CQB150-300S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    9.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, EN, UL

  • Efficiency (Main Output):

    88.5%

  • Input Voltage-Max:

    425 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-PDMA-P8

  • Length:

    57.9 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6.3 A

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    19.2 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.1 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    360 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.28 s

  • Width:

    36.8 mm

CQB150-300S24 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the CQB150-300S24 is to keep the input and output capacitors as close as possible to the module, and to use a solid ground plane to reduce EMI. Additionally, it is recommended to use a separate power plane for the input and output voltages.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output power of the CQB150-300S24 according to the temperature derating curve provided in the datasheet. Additionally, it is recommended to provide adequate airflow and to use a heat sink if necessary.
  • The maximum allowable input voltage ripple for the CQB150-300S24 is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the module.
  • Yes, the CQB150-300S24 can be used in a redundant configuration to achieve high reliability and availability. However, it is recommended to consult with Cincon Electronics Corporation or a qualified engineer to ensure that the redundant configuration is properly designed and implemented.
  • The typical efficiency of the CQB150-300S24 is around 92-94% at full load, depending on the input voltage and operating conditions. However, the actual efficiency may vary depending on the specific application and operating conditions.
