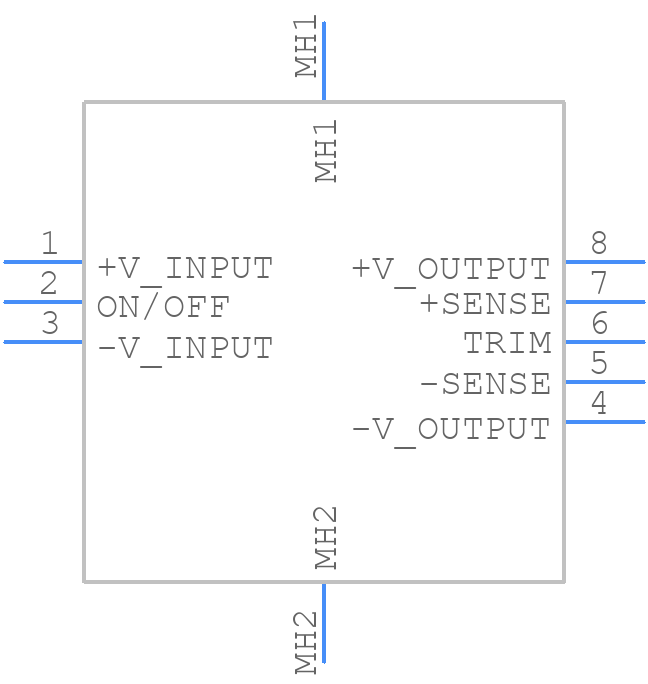

Symbol

click to zoom

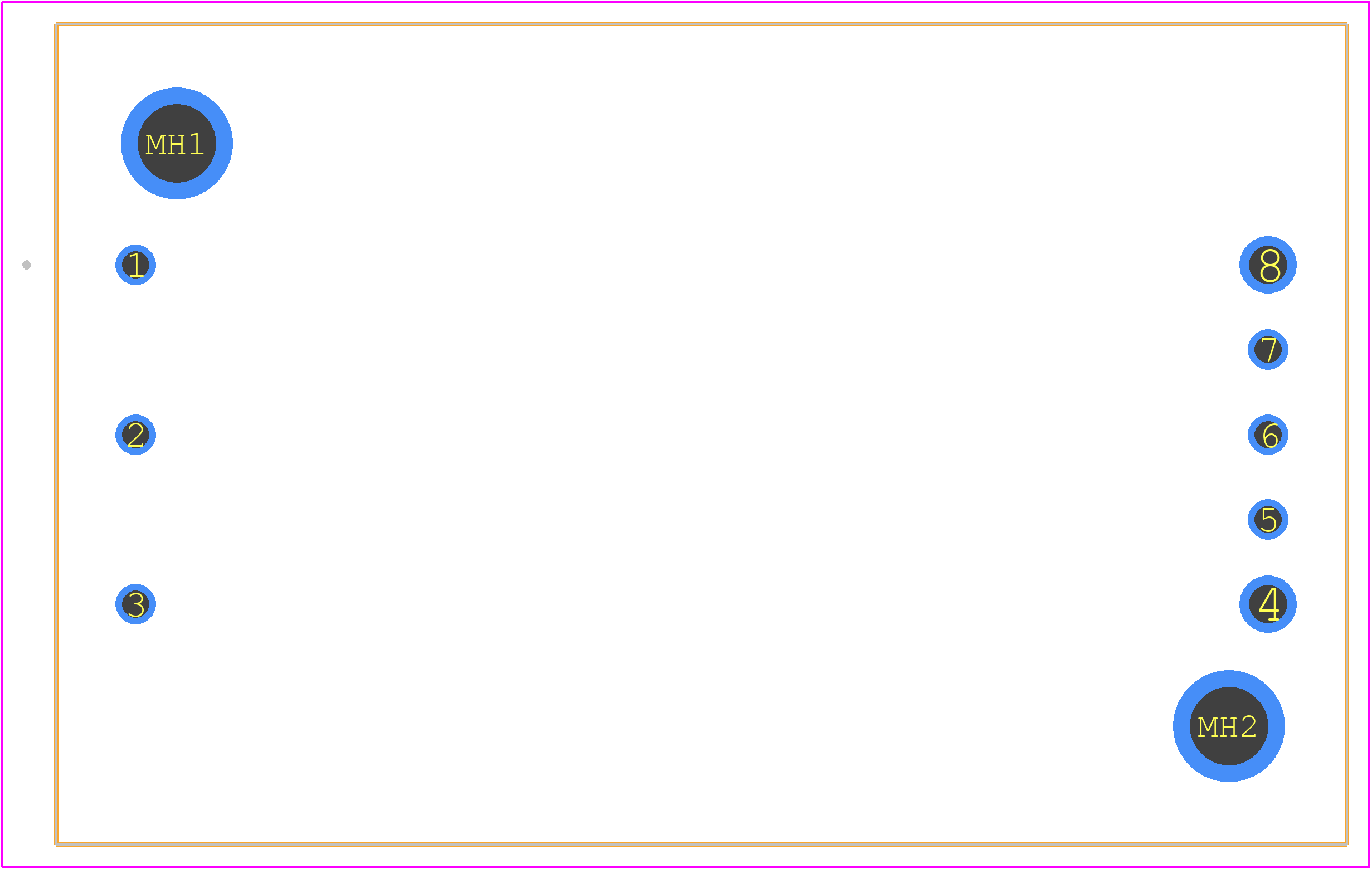

PCB Footprints

CQB150W-110S24 - Cincon PCB footprint - Other - Other - CQB150W-110S24-2

click to zoom

3D Models

CQB150W-110S24 - Cincon - 3D model - Other - CQB150W-110S24-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CQB150W-110S24
Part Number CQB150W-110S24
Manufacturer Cincon
Pin Count 10
Part Category Power Supply
Package Category Other
Footprint Name Other - CQB150W-110S24-2
Released Date Sep 3, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

CQB150W-110S24 Details

Manufacturer Part Number:
CQB150W-110S24
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
1/4 BRICK PACKAGE-8
ECCN Code:
EAR99
Manufacturer:
Cincon Electronics Corporation
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CB, CE, C-UL-US, EN, IEC, UKCA, UL
Efficiency (Main Output):
89%
Input Voltage-Max:
160 V
Input Voltage-Min:
43 V
Input Voltage-Nom:
110 V
JESD-30 Code:
R-PDMA-P8
Length:
57.9 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6.3 A
Output Voltage-Max:
26.4 V
Output Voltage-Min:
21.6 V
Output Voltage-Nom:
24 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,8LEAD,2
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.1 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.06 s
Width:
36.8 mm

CQB150W-110S24 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the converter near a metal enclosure or a heat sink, and ensuring good airflow around the device. The PCB should also be designed to minimize thermal resistance and ensure good heat dissipation.
To ensure reliable start-up and shutdown of the converter, it is recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the output voltage and prevent start-up faults.
The recommended input capacitors are low-ESR ceramic or film capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10-22uF. The recommended output capacitors are low-ESR ceramic or tantalum capacitors with a voltage rating of at least 1.5x the output voltage, and a capacitance value of 10-47uF.
To protect the converter from overcurrent and overvoltage faults, it is recommended to add overcurrent protection (OCP) and overvoltage protection (OVP) circuits. OCP can be implemented using a current sense resistor and a comparator, while OVP can be implemented using a voltage sense resistor and a comparator.
The recommended thermal interface material (TIM) for this converter is a thermal pad or thermal tape with a thermal conductivity of at least 1 W/m-K, and a thickness of 0.5-1.5 mm.
