The recommended PCB layout for optimal thermal performance involves placing the converter on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output capacitors close to the converter.
To ensure reliable start-up and shutdown, ensure that the input voltage is within the specified range, the input capacitor is properly sized, and the enable pin is properly driven. Also, ensure that the output voltage is monitored and the converter is shut down if the output voltage exceeds the specified range.
The derating curves for the converter's power rating can be obtained from the manufacturer or can be calculated based on the thermal performance data provided in the datasheet. Typically, the power rating is derated by 1-2% per degree Celsius above the maximum operating temperature.
To troubleshoot issues with the converter's output voltage regulation, check the input voltage, output load, and output voltage sense lines. Ensure that the output voltage sense lines are properly connected and that the output voltage is within the specified range. Also, check for any signs of overheating or component failure.
The recommended input and output capacitors for the converter are typically low-ESR capacitors with a voltage rating that exceeds the maximum input or output voltage. The capacitance value depends on the specific application and the desired level of filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CQB50W12-72S24 Overview

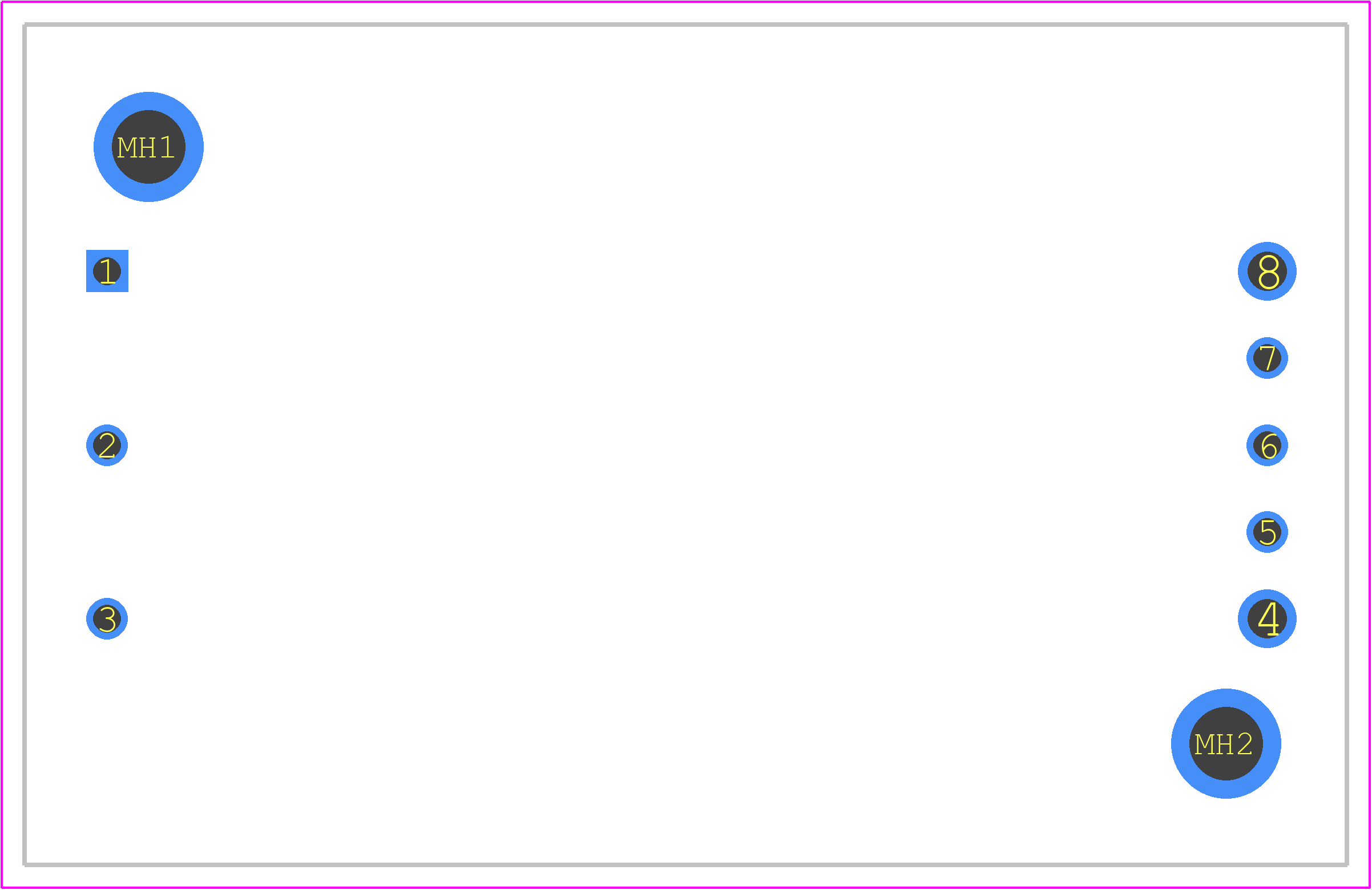

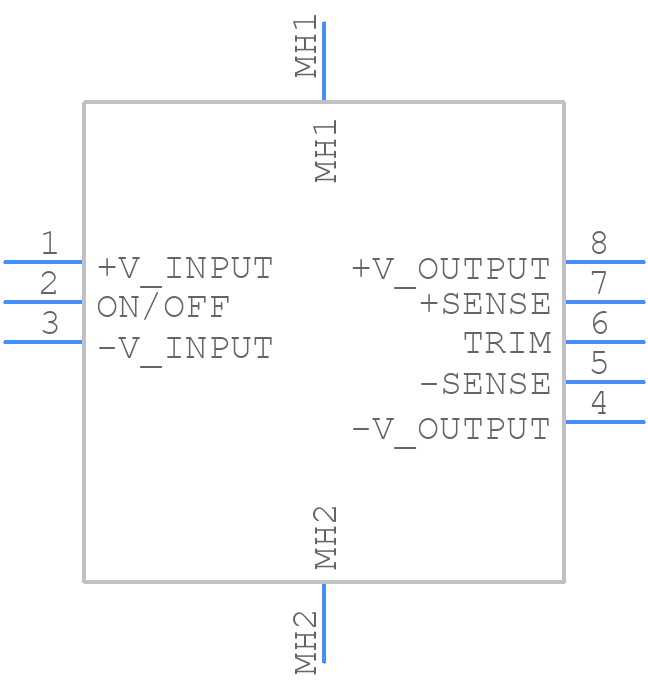

Use the download button to access the CQB50W12-72S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CQB50,
or try a keyword search, such as Power Supply Modules
