CR22-50D-2.54DSA(70) - Hirose

Description: 50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Download CR22-50D-2.54DSA(70) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

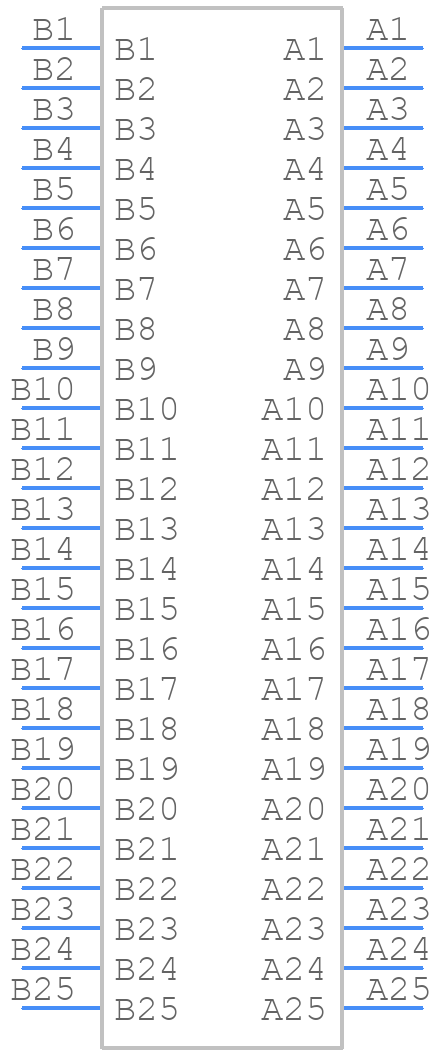

CR22-50D-2.54DSA(70) - Hirose - PCB symbol
click to zoom
PCB Footprints

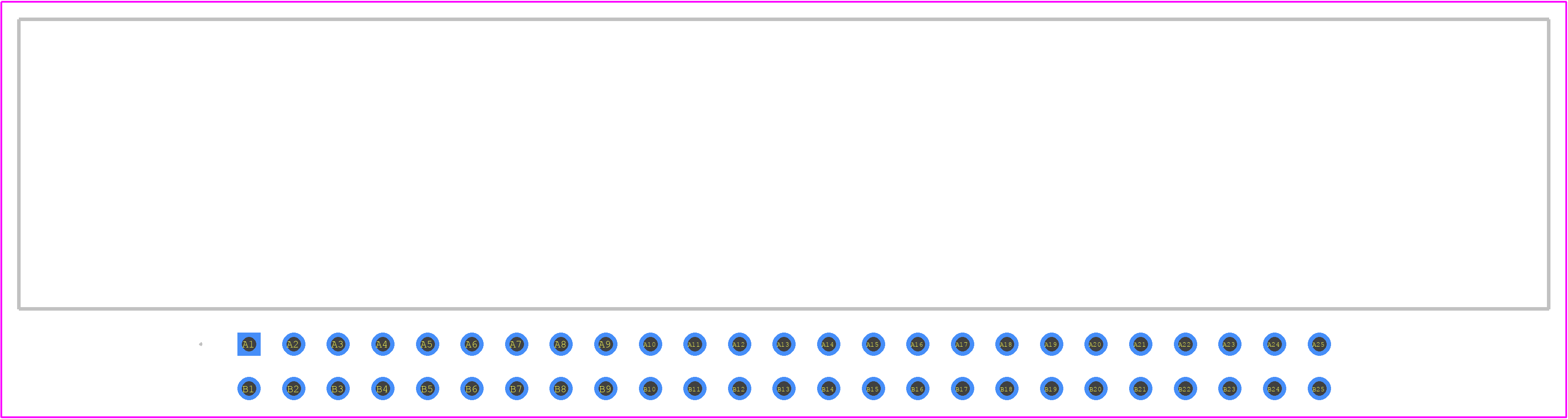

CR22-50D-2.54DSA(70) - Hirose PCB footprint - Other - Other - CR22-50D-2.54DSA(70)-3
click to zoom
3D Models
CR22-50D-2.54DSA(70) - Hirose - 3D model - Other - CR22-50D-2.54DSA(70)-3
click to zoom

CR22-50D-2.54DSA(70) Details

  • Manufacturer Part Number:

    CR22-50D-2.54DSA(70)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

CR22-50D-2.54DSA(70) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the CR22-50D-2.54DSA(70) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • Yes, the CR22-50D-2.54DSA(70) has a operating temperature range of -40°C to 105°C and is designed to withstand harsh environments, including outdoor use and high-temperature areas.
  • The CR22-50D-2.54DSA(70) has a mating cycle life of 500 cycles, as specified in the Hirose Electric Co Ltd's datasheet.
  • Yes, the CR22-50D-2.54DSA(70) is designed to accommodate cables with gauges ranging from AWG24 to AWG30, but it's recommended to consult the datasheet and application notes for specific cable requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CR22-50D-2.54DSA(70) Overview

Use the download button to access the CR22-50D-2.54DSA(70) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CR22-, or try a keyword search, such as Headers and Edge Type Connectors
