CR2450NFH-LF footprint, schematic symbol and 3D model by RENATA

Symbol

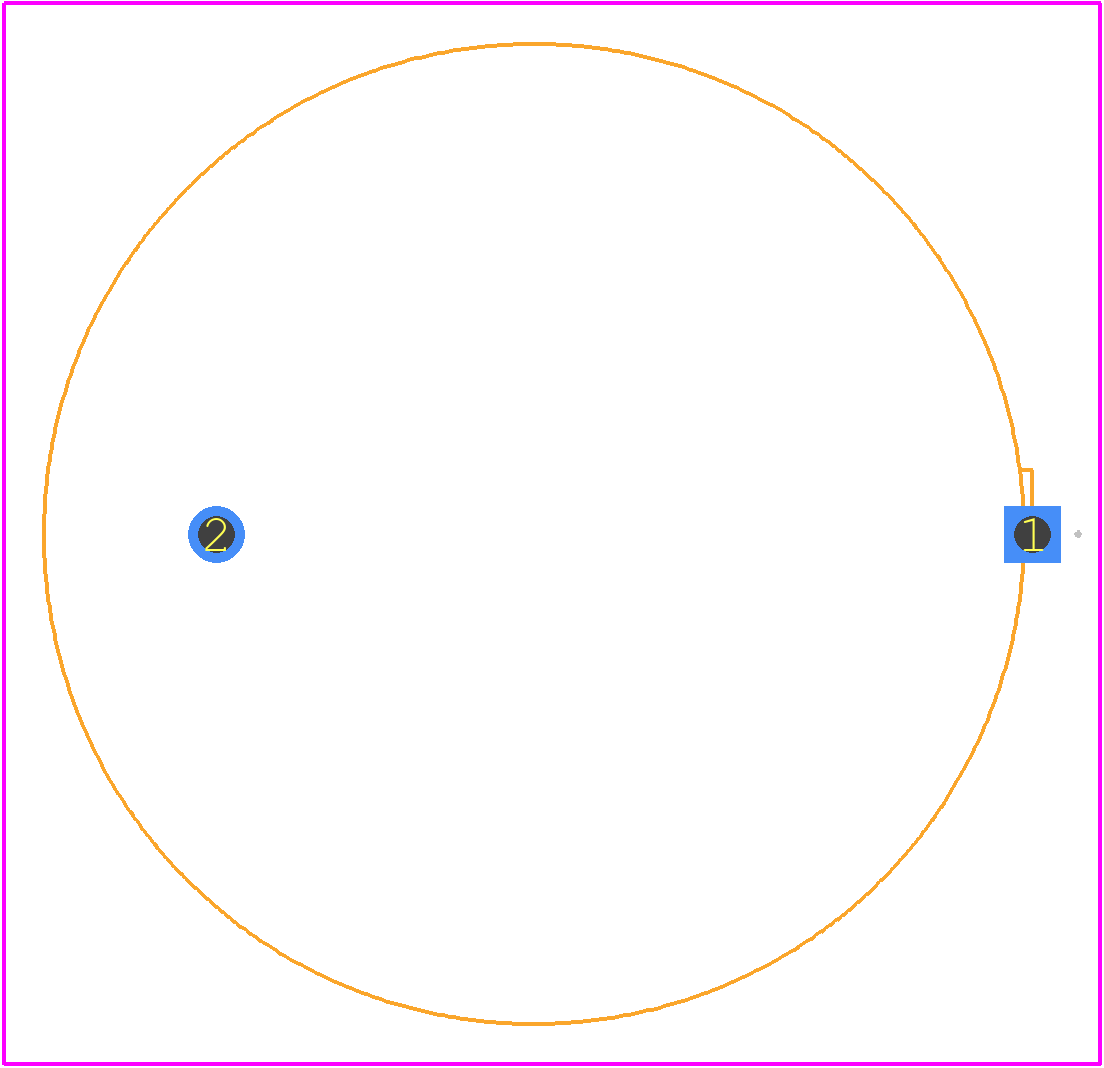

PCB Footprints

3D Models

CR2450NFH-LF Details

The recommended storage temperature for CR2450NFH-LF batteries is between 10°C to 30°C (50°F to 86°F) to maintain their performance and shelf life.
While CR2450NFH-LF batteries can operate in temperatures up to 60°C (140°F), it's not recommended to use them in high-temperature applications (> 40°C or 104°F) for extended periods, as this can affect their performance and lifespan.
To prevent leakage or damage, store CR2450NFH-LF batteries in a cool, dry place, away from metal objects and magnetic fields. Avoid mixing old and new batteries, and keep them in their original packaging or a protective case when not in use.
CR2450NFH-LF batteries are non-rechargeable, so they should not be charged. Attempting to charge them can cause damage or leakage.
While it's technically possible to connect CR2450NFH-LF batteries in series or parallel, it's not recommended, as this can increase the risk of leakage, overheating, or other safety issues. Use them individually, as intended.

Community Provided

System Verified

Community Approved

Use the download button to access the CR2450NFH-LF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CR245, or try a keyword search, such as Batteries
