CR2477W-HO4 - Murata Electronics

Description: Coin Cell Battery Coin Mn Dioxide Li Heat Resistant 1/Tab

Download CR2477W-HO4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CR2477W-HO4 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

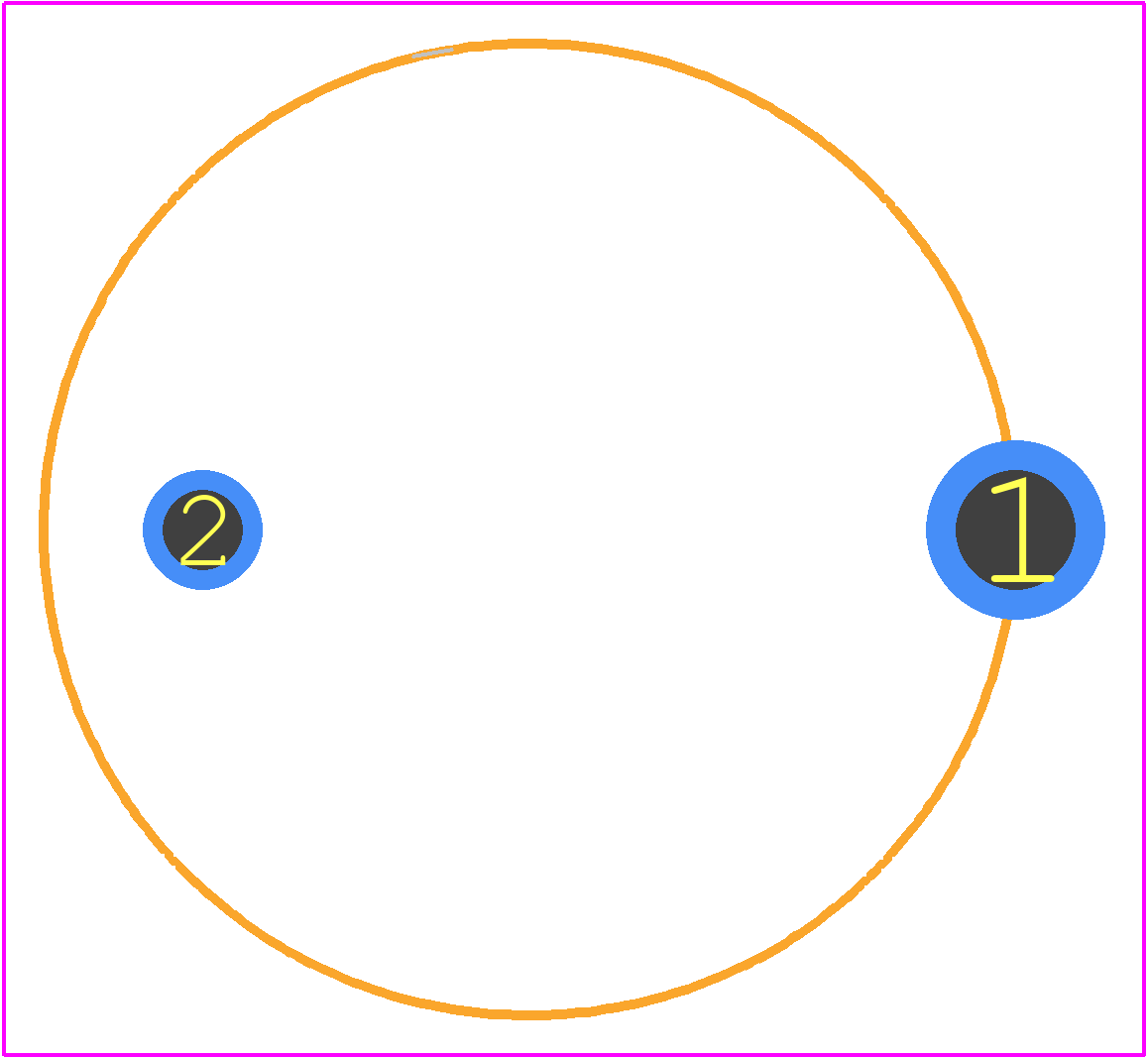

CR2477W-HO4 - Murata Electronics PCB footprint - Other - Other - CR2477W-HO4-3
click to zoom
3D Models
CR2477W-HO4 - Murata Electronics - 3D model - Other - CR2477W-HO4-3
click to zoom

CR2477W-HO4 Details

  • Manufacturer Part Number:

    CR2477W-HO4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.J.1

  • HTS Code:

    8506.80.00.00

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Approvals:

    UL

  • Battery Chemistry:

    MANGANESE DIOXIDE LITHIUM

  • Battery Size:

    2477

  • Battery Type:

    PRIMARY

  • Capacity:

    1 Ah

  • Diameter:

    24.5 mm

  • Height:

    7.7 mm

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Type:

    TAB

  • Voltage:

    3 V

  • Weight:

    11 g

CR2477W-HO4 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CR2477W-HO4 is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle the CR2477W-HO4's sensitivity to moisture, it is recommended to store the components in a dry environment, use a desiccant package, and follow the recommended reflow soldering profile to minimize moisture absorption.
  • The maximum operating temperature range for the CR2477W-HO4 is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Yes, the CR2477W-HO4 is designed to withstand high-vibration environments, but it's recommended to follow the recommended mounting and soldering guidelines to ensure reliable operation.
  • To ensure the CR2477W-HO4's reliability in a high-temperature environment, it's recommended to follow the recommended derating guidelines, use a thermally conductive interface material, and ensure good thermal management.
