The recommended land pattern for CR2512-JW-560ELF is a rectangular pad with a minimum size of 1.5 mm x 3.5 mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
While CR2512-JW-560ELF is a general-purpose chip resistor, it is not optimized for high-frequency applications. For frequencies above 100 MHz, it's recommended to use a high-frequency resistor with a lower inductance and capacitance, such as Bourns' HF series resistors.
CR2512-JW-560ELF has a maximum operating temperature of 155°C. While it can tolerate high temperatures, it's essential to derate the power rating according to the temperature derating curve provided in the datasheet to ensure reliable operation.
Yes, CR2512-JW-560ELF is compatible with lead-free soldering processes, including RoHS and WEEE compliant soldering. The resistor's terminations are made of a lead-free, tin-silver-copper alloy that meets the requirements of these regulations.
CR2512-JW-560ELF has a moisture sensitivity level (MSL) of 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before soldering. Proper storage and handling procedures should be followed to prevent moisture absorption.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CR2512-JW-560ELF Overview

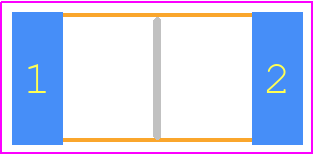

Use the download button to access the CR2512-JW-560ELF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CR251,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
