The recommended land pattern for the CR2512-JW-561ELF is a rectangular pad with a size of 2.5mm x 1.3mm, with a 0.5mm x 0.5mm thermal pad in the center. The pad should be solder-mask defined and have a non-solder-mask-defined (NSMD) pad for the thermal pad.
The CR2512-JW-561ELF is rated for operation up to 150°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 125°C. It's also important to ensure that the component is properly cooled and that the PCB is designed to handle high temperatures.
During reflow soldering, the CR2512-JW-561ELF should be exposed to a peak temperature of 260°C for no more than 10 seconds. The component should be placed on a solder paste with a melting point of 183°C to 220°C, and the reflow profile should be optimized to prevent thermal shock.
Yes, the CR2512-JW-561ELF is compatible with lead-free soldering. It's made with a lead-free termination finish and is designed to meet the requirements of the RoHS directive.
The CR2512-JW-561ELF should be stored in a dry, cool place away from direct sunlight and moisture. It should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CR2512-JW-561ELF Overview

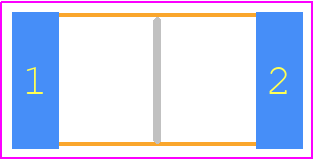

Use the download button to access the CR2512-JW-561ELF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CR251,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
