- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CR8076-ALD
- Part Number CR8076-ALD
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other

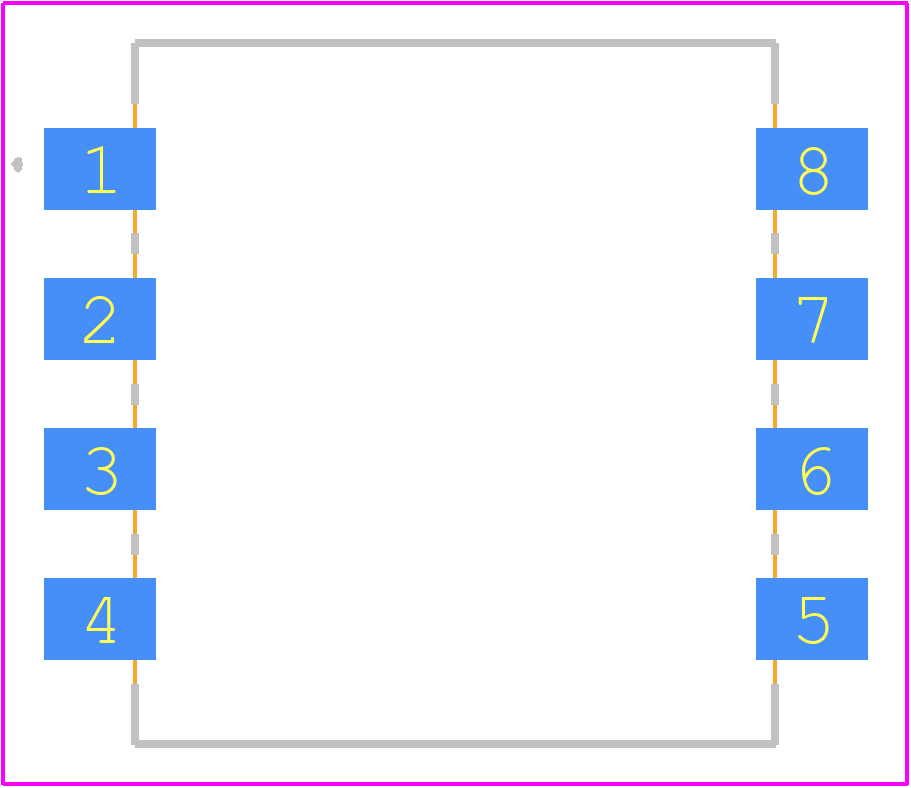

- Footprint Name Other - CR8076-ALD-4
- Released Date Oct 13, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CR8076-ALD Details
-
Manufacturer Part Number:
CR8076-ALD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
Additional Feature:
LENGTH DIMENSION INCLUDES TERMINAL ALSO
-
Height:
10 mm
-
Length:
24 mm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Primary Winding:
1
CR8076-ALD Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is a rectangular pad with dimensions of 3.8 mm x 2.5 mm, with a 1.3 mm x 1.3 mm thermal pad in the center.
-
The CR8076-ALD has a high current rating, which can generate significant heat. To handle thermal considerations, ensure good airflow around the inductor, use a thermal pad or heat sink, and follow proper PCB design guidelines for thermal management.
-
The maximum operating temperature range for the CR8076-ALD is -40°C to +125°C, with a derating of the current rating above 80°C. Refer to the datasheet for specific derating curves.
-
The CR8076-ALD is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use a more robust inductor or take additional measures to secure the component, such as using a vibration-dampening material or a more robust PCB design.
-
To select the correct inductor value, consider the operating frequency, current requirements, and voltage ratings of your application. Use Coilcraft's online inductor selection tools or consult with their application engineers to determine the optimal inductor value.
Trust Checks
Community Provided
System Verified
Community Approved
CR8076-ALD Overview

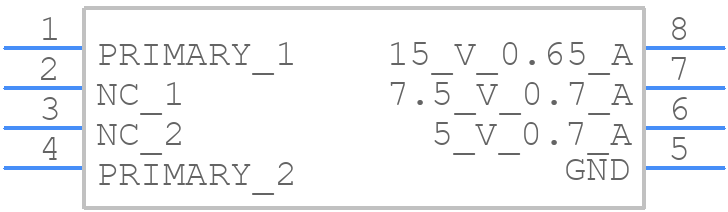

Use the download button to access the CR8076-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CR807,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
