The thermal resistance of the CRCW25122K20JNEG is 240°C/W, which is typical for a 2512-sized chip resistor.
While the CRCW25122K20JNEG is a general-purpose resistor, it may not be the best choice for high-frequency applications due to its relatively high inductance. For high-frequency applications, consider using a resistor with a lower inductance, such as the CRCW25122K20JNEH.
The CRCW25122K20JNEG has a maximum operating temperature of 155°C, so it can be used in high-temperature environments. However, the resistor's power rating will decrease at higher temperatures, so be sure to derate the power accordingly.
Yes, the CRCW25122K20JNEG is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
The CRCW25122K20JNEG has an MSL rating of 1, which means it can withstand exposure to moisture without damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CRCW25122K20JNEG Overview

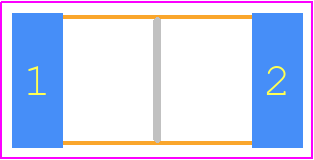

Use the download button to access the CRCW25122K20JNEG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRCW2,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
