CRCW25122K20JNTG - Vishay

Description: Thick Film Resistors - SMD 1watt 2.2Kohms 5%

Download CRCW25122K20JNTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRCW25122K20JNTG - Vishay - PCB symbol
click to zoom
PCB Footprints

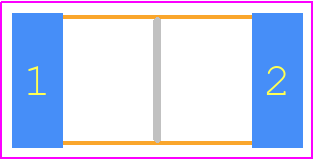

CRCW25122K20JNTG - Vishay PCB footprint - Resistor Chip - Resistor Chip - CRCW2512
click to zoom
3D Models
CRCW25122K20JNTG - Vishay - 3D model - Resistor Chip - CRCW2512
click to zoom

CRCW25122K20JNTG Details

  • Manufacturer Part Number:

    CRCW25122K20JNTG

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Israel

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    RATED AC VOLTAGE (V): 500

  • Construction:

    Rectangular

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.3 mm

  • Package Style:

    SMT

  • Package Width:

    3.15 mm

  • Packing Method:

    TR, Blister, 7 Inch

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    2200 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    500 V
