CRGH2512J12K - TE Connectivity

Description: TE Connectivity CRGH Series Thick Film Resistor 2512 Case 12kΩ ±5% 2W ±200ppm/°C

Download CRGH2512J12K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGH2512J12K - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

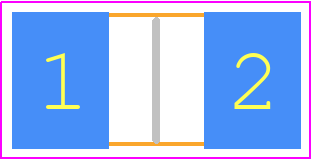

CRGH2512J12K - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGH2512
click to zoom
3D Models
CRGH2512J12K - TE Connectivity - 3D model - Resistor Chip - CRGH2512
click to zoom

CRGH2512J12K Details

  • Manufacturer Part Number:

    CRGH2512J12K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    12000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGH2512J12K Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's essential to follow the soldering profile recommended by TE Connectivity or consult with their application engineers for specific guidance.
  • Yes, CRGH2512J12K is designed to withstand high-vibration environments. However, it's crucial to ensure that the component is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult with TE Connectivity's application engineers for specific guidance on vibration testing and mounting recommendations.
  • Yes, CRGH2512J12K is compatible with lead-free soldering processes. The component is RoHS-compliant and meets the requirements for lead-free soldering. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The maximum operating temperature range for CRGH2512J12K is -55°C to 125°C (-65°F to 257°F). However, it's essential to consult with TE Connectivity's application engineers for specific guidance on temperature derating and reliability considerations.
  • CRGH2512J12K is designed to operate in humid environments, but it's essential to follow proper handling and storage procedures to prevent moisture absorption. Consult with TE Connectivity's application engineers for specific guidance on moisture sensitivity and humidity testing.
