CRGS2512J330R - TE Connectivity

Description: Configuration Features: Number of Resistors 1 | Dimensions: Product Height .022 INCH | Product Width 3.2 MM | Product Length 6.35 MM | Product Width .126 INCH | Product Height .55 MM | Product Length .25 INCH | Electrical Characteristics: Passive Component Tolerance 5 PCT | Resistance Value 330 OHM | Resistance Class Up to 1kΩ | Power Rating 1.5 WATT | Operating Voltage 250 V | Packaging Features: Packaging Method Taped & Reeled | Product Type Features: Resistor Type General Purpose Resistor | Package Size

Download CRGS2512J330R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRGS2512J330R - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

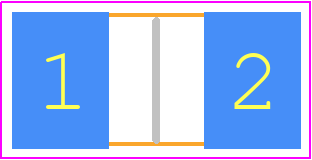

CRGS2512J330R - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - CRGS2512
click to zoom
3D Models
CRGS2512J330R - TE Connectivity - 3D model - Resistor Chip - CRGS2512
click to zoom

CRGS2512J330R Details

  • Manufacturer Part Number:

    CRGS2512J330R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    RECTANGULAR PACKAGE

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    1.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    330 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    250 V

CRGS2512J330R Frequently Asked Questions (FAQs)

  • The recommended land pattern for CRGS2512J330R is a rectangular pad with a size of 1.3mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • Yes, CRGS2512J330R is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's performance and reliability may degrade at temperatures above 125°C, so careful consideration should be given to the specific application requirements.
  • Yes, CRGS2512J330R is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. The component's terminations are made of a lead-free alloy and are designed to withstand the higher temperatures associated with lead-free soldering.
  • The typical tolerance for the resistance value of CRGS2512J330R is ±1%. This means that the actual resistance value of the component may vary by up to 1% from the nominal value of 330Ω.
  • Yes, CRGS2512J330R is suitable for use in high-frequency applications up to 1 GHz. The component's construction and materials are designed to minimize parasitic inductance and capacitance, making it suitable for use in high-frequency circuits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRGS2512J330R Overview

Use the download button to access the CRGS2512J330R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRGS2, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
