CRJ007-MLG-TH - Same Sky

Description: 10/100/1000 BaseT, 8P10C, Single Port, Horizontal, Shielded, LED, Through Hole, RJ45 with Integrated Magnetics Modular Connector

Download CRJ007-MLG-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

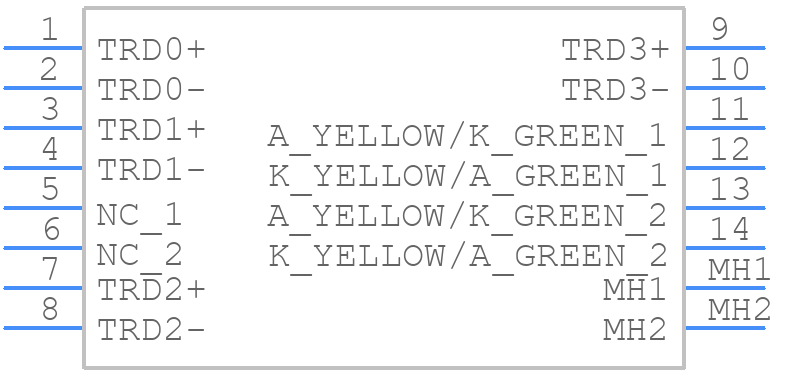

CRJ007-MLG-TH - Same Sky - PCB symbol
click to zoom
PCB Footprints

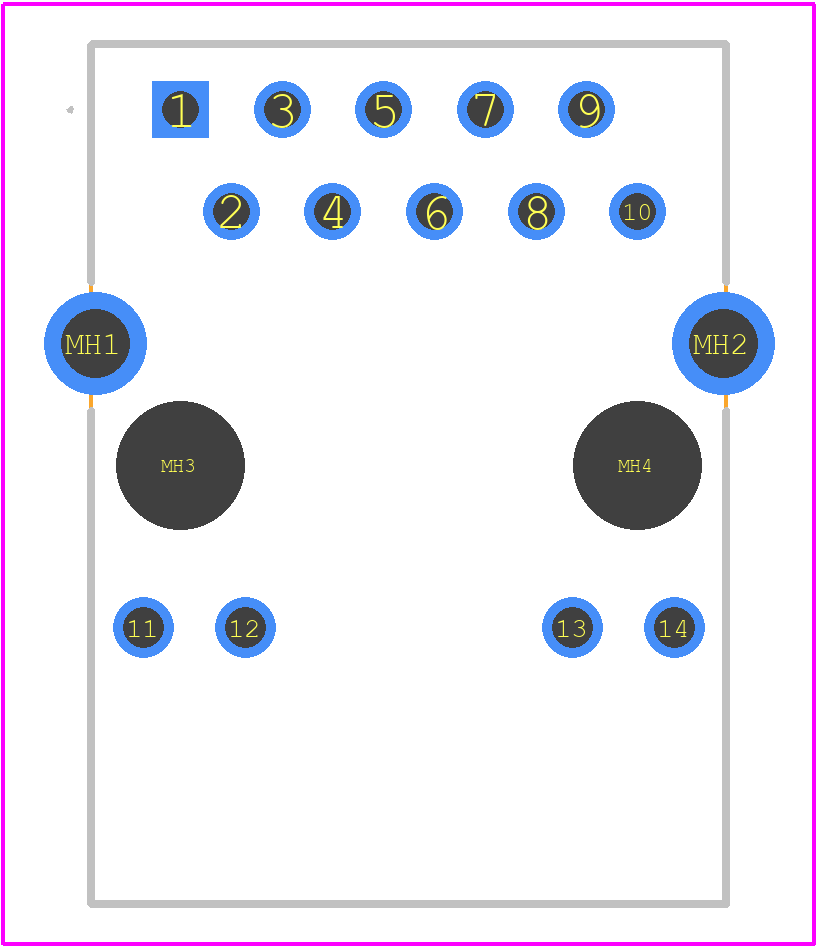

CRJ007-MLG-TH - Same Sky PCB footprint - Other - Other - CRJ007-MLG-TH-2
click to zoom
3D Models
CRJ007-MLG-TH - Same Sky - 3D model - Other - CRJ007-MLG-TH-2
click to zoom

CRJ007-MLG-TH Details

  • Manufacturer Part Number:

    CRJ007-MLG-TH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Same Sky

  • YTEOL:

    7.57

  • Board Mounting Option:

    HOLE 0.125

  • Body Breadth:

    0.535 inch

  • Body Depth:

    0.846 inch

  • Body Length:

    0.625 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    MODULAR RJ45

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    1000 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    70 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.141 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

CRJ007-MLG-TH Frequently Asked Questions (FAQs)

  • CUI Devices recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10nF) between the input and ground pins to minimize noise and ensure stable operation.
  • To ensure reliable operation in high-vibration environments, CUI Devices recommends securing the component using a suitable adhesive or mechanical fastening method, and ensuring the PCB is properly mounted and secured to prevent movement or flexing.
  • The CRJ007-MLG-TH has an operating temperature range of -40°C to +125°C, but it's essential to note that the component's performance and accuracy may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • The CRJ007-MLG-TH is not designed for use in humid or wet environments. It's essential to ensure the component is operated in a dry, clean environment to prevent damage or corrosion. If you need a component for use in harsh environments, consider a different model or consult with CUI Devices for custom solutions.
  • CUI Devices recommends storing the CRJ007-MLG-TH in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the edges, avoiding touching the pins or electrical contacts to prevent damage or contamination.
