CUI Devices recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize trace lengths, and use a 4-layer PCB with a dedicated power plane to reduce noise and EMI.
To ensure reliable operation in high-temperature environments, it's crucial to follow proper thermal management practices. This includes providing adequate airflow, using a heat sink if necessary, and ensuring the component is operated within its specified temperature range. Additionally, consider using a thermally conductive interface material to improve heat transfer between the component and the PCB.
CUI Devices recommends following the standard reflow soldering profile for surface-mount devices, with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. For rework, use a low-temperature soldering iron (less than 350°F) and avoid applying excessive heat or force, which can damage the component.
To troubleshoot common issues, start by verifying the PCB layout and ensuring that the component is properly soldered. Check for proper decoupling, filtering, and shielding. Use an oscilloscope to measure the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Yes, as with any switching regulator, EMI/EMC considerations are crucial. Ensure proper shielding, filtering, and decoupling to minimize radiated emissions. Follow the recommended PCB layout and component placement guidelines to reduce conducted emissions. Additionally, consider using EMI filters or common-mode chokes to further reduce emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CRJ044-3-TH Overview

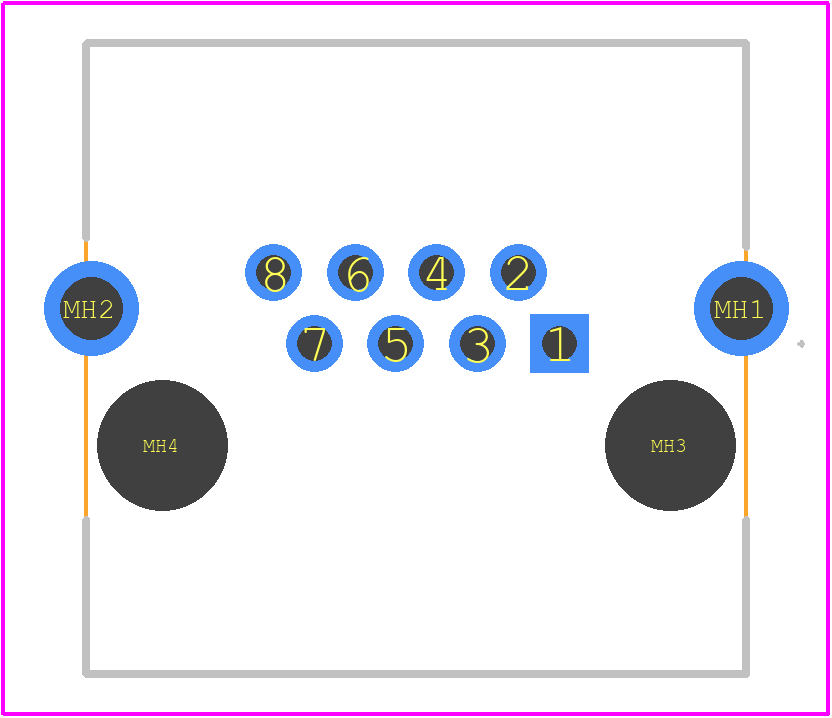

Use the download button to access the CRJ044-3-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRJ04,
or try a keyword search, such as Telecom and Datacom Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
