CRJ048-LG-TH Frequently Asked Questions (FAQs)

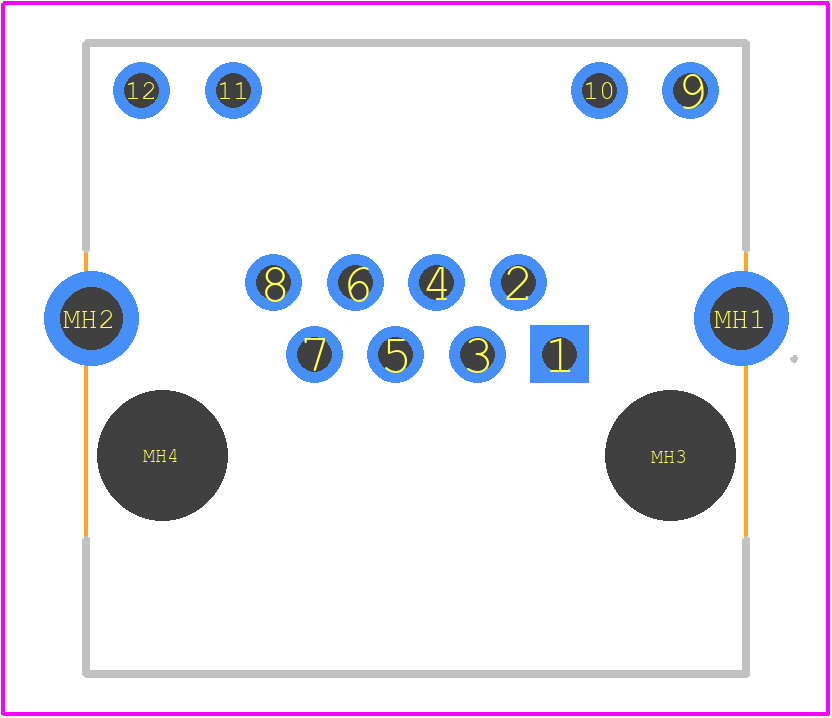

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet or application notes to ensure optimal performance and minimize thermal resistance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended.
• How do I ensure reliable soldering and avoid cold joints?
  To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste or flux. Avoid applying excessive pressure or vibration during the soldering process. Inspect the joints under a microscope or with a magnifying glass to ensure a smooth, shiny finish.
• What is the maximum operating temperature range for this component?
  The CRJ048-LG-TH has an operating temperature range of -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet or contact CUI Devices for specific guidance on temperature derating.
• How do I handle and store these components to prevent damage or degradation?
  Handle the components by the body, avoiding touching the leads or electrical contacts. Store them in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD handling procedures to prevent damage.
• Are there any specific testing or inspection procedures recommended for this component?
  CUI Devices recommends following industry-standard testing and inspection procedures, such as those outlined in IPC-A-610 or IPC-J-STD-001. Visual inspection, solderability testing, and electrical testing may be necessary to ensure the component meets specifications.
