CRM2512-FX-1R00ELF - Bourns

Description: BOURNS - CRM2512-FX-1R00ELF - RESISTOR THICK FILM, 1OHM, 1%, 2512

Download CRM2512-FX-1R00ELF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRM2512-FX-1R00ELF - Bourns - PCB symbol
click to zoom
PCB Footprints

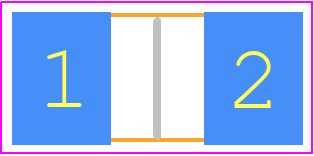

CRM2512-FX-1R00ELF - Bourns PCB footprint - Resistor Chip - Resistor Chip - CRM2512
click to zoom
3D Models
CRM2512-FX-1R00ELF - Bourns - 3D model - Resistor Chip - CRM2512
click to zoom

CRM2512-FX-1R00ELF Details

  • Manufacturer Part Number:

    CRM2512-FX-1R00ELF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    10

  • Additional Feature:

    PRECISION

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.3 mm

  • Package Style:

    SMT

  • Package Width:

    3.1 mm

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    1 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    300 V
