CRM2512-JW-200ELF - Bourns

Description: Current Sense Resistors - SMD 2watts 5% 20ohms 200 PPM 2512

Download CRM2512-JW-200ELF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRM2512-JW-200ELF - Bourns - PCB symbol
click to zoom
PCB Footprints

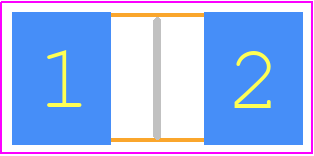

CRM2512-JW-200ELF - Bourns PCB footprint - Resistor Chip - Resistor Chip - CRM2512
click to zoom
3D Models
CRM2512-JW-200ELF - Bourns - 3D model - Resistor Chip - CRM2512
click to zoom

CRM2512-JW-200ELF Details

  • Manufacturer Part Number:

    CRM2512-JW-200ELF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    10

  • Additional Feature:

    PRECISION

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.3 mm

  • Package Style:

    SMT

  • Package Width:

    3.1 mm

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    20 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    300 V

CRM2512-JW-200ELF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the CRM2512-JW-200ELF is a rectangular pad with dimensions of 2.5mm x 1.3mm, with a 0.5mm radius corner. The pad should be centered on the component and have a minimum of 0.2mm clearance around the component body.
  • The CRM2512-JW-200ELF has a maximum junction temperature of 150°C. To ensure reliable operation, the component should be mounted on a PCB with a thermal conductivity of at least 1 W/m-K. Additionally, a thermal via or thermal pad can be used to improve heat dissipation.
  • The recommended soldering profile for the CRM2512-JW-200ELF is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. The component should be soldered using a solder with a melting point of 217°C or higher.
  • After soldering, the CRM2512-JW-200ELF should be cleaned with a mild detergent and deionized water to remove any flux residue. The component should then be dried with a soft brush or air blower to prevent moisture accumulation.
  • The CRM2512-JW-200ELF should be stored in a dry, cool place away from direct sunlight and moisture. The component should be handled with anti-static wrist straps or mats to prevent electrostatic discharge damage.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CRM2512-JW-200ELF Overview

Use the download button to access the CRM2512-JW-200ELF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CRM25, or try a keyword search, such as Metal Glaze/Thick Film Resistors
