CRM2512-JW-220ELF - Bourns

Description: Bourns CRM2512 Resistor Chip

Download CRM2512-JW-220ELF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRM2512-JW-220ELF - Bourns - PCB symbol
click to zoom
PCB Footprints

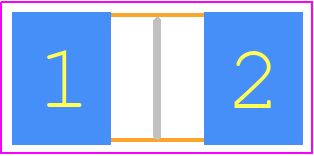

CRM2512-JW-220ELF - Bourns PCB footprint - Resistor Chip - Resistor Chip - CRM2512
click to zoom
3D Models
CRM2512-JW-220ELF - Bourns - 3D model - Resistor Chip - CRM2512
click to zoom

CRM2512-JW-220ELF Details

  • Manufacturer Part Number:

    CRM2512-JW-220ELF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    10

  • Additional Feature:

    PRECISION

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.3 mm

  • Package Style:

    SMT

  • Package Width:

    3.1 mm

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    22 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    300 V

CRM2512-JW-220ELF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CRM2512-JW-220ELF can be found in the Bourns Application Note S-8151, which provides a detailed guide for PCB layout and land pattern design.
  • The CRM2512-JW-220ELF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through proper PCB design, thermal vias, and heat sinks if necessary. Consult the datasheet for thermal resistance and power dissipation guidelines.
  • Bourns recommends following the IPC-J-STD-001 standard for soldering the CRM2512-JW-220ELF. The recommended soldering temperature is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the CRM2512-JW-220ELF is a sensitive electronic component and requires proper handling and storage. Avoid exposing the component to moisture, extreme temperatures, or mechanical stress. Store the components in their original packaging, away from direct sunlight and humidity.
  • The lead time and availability for the CRM2512-JW-220ELF may vary depending on the region and distributor. It's recommended to check with authorized distributors or Bourns' customer service for the most up-to-date information on lead times and availability.
