The recommended land pattern for the CRM2512-JW-272ELF can be found in the Bourns Application Note S-8151, which provides guidelines for PCB layout and land pattern design.
The CRM2512-JW-272ELF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management during the design process. This includes providing adequate airflow, using thermal vias, and selecting a suitable PCB material with high thermal conductivity.
The self-resonant frequency (SRF) of the CRM2512-JW-272ELF is not explicitly stated in the datasheet. However, according to Bourns' technical support, the SRF is typically above 100 MHz. For more accurate information, it's recommended to contact Bourns' technical support or request a custom SRF measurement.
The CRM2512-JW-272ELF is designed to meet the vibration requirements of IEC 60068-2-6, which includes vibration testing up to 10 G. However, for extreme vibration environments, it's recommended to consult with Bourns' technical support to determine the suitability of the component for your specific application.
The CRM2512-JW-272ELF should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to follow the EIA-625 standard for component storage and handling to prevent damage and ensure reliability.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CRM2512-JW-272ELF Overview

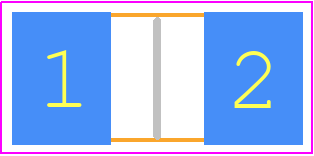

Use the download button to access the CRM2512-JW-272ELF schematic symbol, PCB footprint, and 3D model.
