CRM2512AJW-100ELF - Bourns

Description: Thick Film Resistors - SMD 2512 10 ohms 5% 2W TC200 AEC-Q200

Download CRM2512AJW-100ELF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CRM2512AJW-100ELF - Bourns - PCB symbol
click to zoom
PCB Footprints

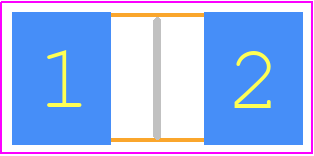

CRM2512AJW-100ELF - Bourns PCB footprint - Resistor Chip - Resistor Chip - CRM2512
click to zoom
3D Models
CRM2512AJW-100ELF - Bourns - 3D model - Resistor Chip - CRM2512
click to zoom

CRM2512AJW-100ELF Details

  • Manufacturer Part Number:

    CRM2512AJW-100ELF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    10

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.4 mm

  • Package Style:

    SMT

  • Package Width:

    3.1 mm

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    10 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    300 V

CRM2512AJW-100ELF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CRM2512AJW-100ELF can be found in the Bourns application note AN204, which provides guidelines for PCB layout and land pattern design.
  • The CRM2512AJW-100ELF has a thermal resistance of 35°C/W. To handle thermal considerations, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines to minimize thermal impedance.
  • The recommended soldering profile for the CRM2512AJW-100ELF is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the CRM2512AJW-100ELF is compatible with lead-free soldering. It is RoHS compliant and can be soldered using lead-free soldering processes.
  • The CRM2512AJW-100ELF has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.
