CRR03-1AS footprint, schematic symbol and 3D model by STANDEXMEDER

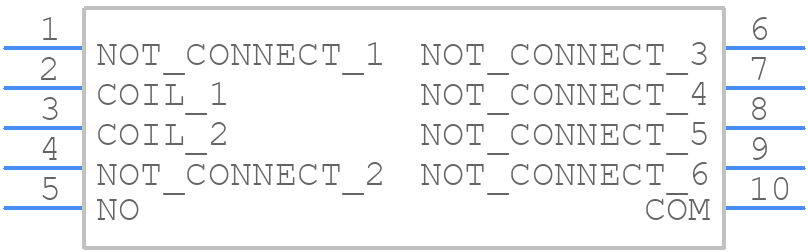

Symbol

PCB Footprints

3D Models

CRR03-1AS Details

The maximum switching frequency of the CRR03-1AS is 20 Hz. However, this frequency can be affected by the type of load, voltage, and current being switched.
The CRR03-1AS has an operating temperature range of -40°C to 125°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to derate the relay's specifications at high temperatures.
The minimum voltage required to activate the CRR03-1AS is 5V. However, the recommended operating voltage is 12V to ensure reliable switching.
The CRR03-1AS is designed to withstand moderate vibration levels. However, extreme vibration can affect the relay's performance and lifespan. It's recommended to consult with the manufacturer or perform environmental testing to ensure the relay's reliability in high-vibration environments.
The expected lifespan of the CRR03-1AS is 10^7 operations at a switching frequency of 0.1 Hz. However, the actual lifespan may vary depending on the application, environment, and usage.

Community Provided

System Verified

Community Approved

Use the download button to access the CRR03-1AS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CRR03, or try a keyword search, such as Reed Relays
