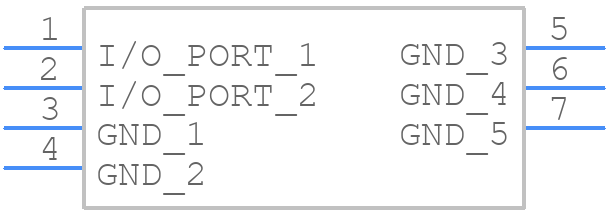

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CS-286
- Part Number CS-286
- Manufacturer NIC Components
- Pin Count 7
- Part Category Filter
- Package Category Other

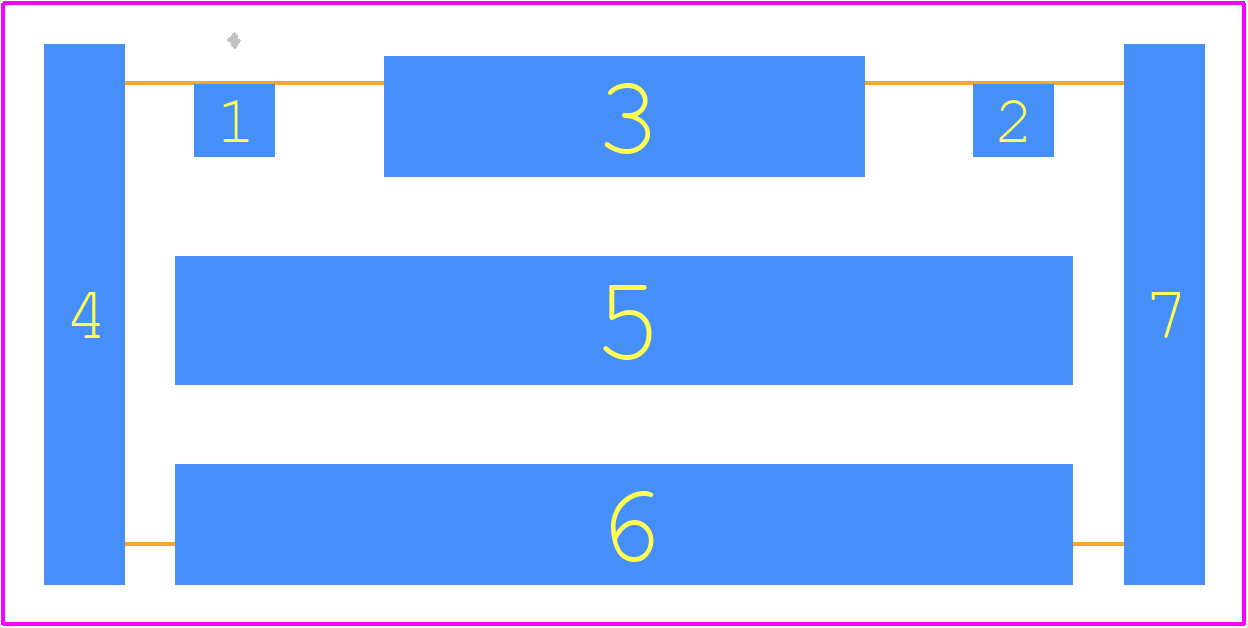

- Footprint Name Other - CS-286-5
- Released Date Mar 31, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CS-286 Details
-
Manufacturer Part Number:
CS-286
-
Manufacturer:
NIC Components Corp
Trust Checks
Expert Contribution
System Verified
Community Approved
CS-286 Overview
Use the download button to access the CS-286 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CS-28,
or try a keyword search, such as Sockets and Chip Carriers
