Part Image

CS1005B - Same Sky

Description: 15 mm, 5 Vcc, Bipolar, Through Hole, ±10 Rated Current, -10~10 Linearity Range, Open Loop Current Sensor

Download CS1005B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

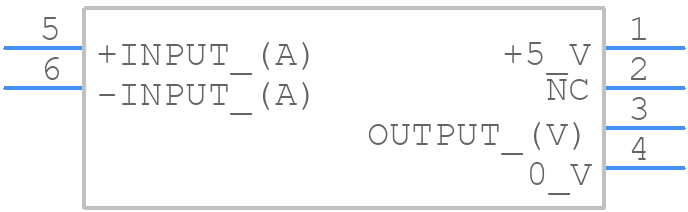

Symbol
CS1005B - Same Sky - PCB symbol
click to zoom
PCB Footprints
CS1005B - Same Sky PCB footprint - Other - Other - CS1005B-1
click to zoom
3D Models
CS1005B - Same Sky - 3D model - Other - CS1005B-1
click to zoom

CS1005B Details

  • Manufacturer Part Number:

    CS1005B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Same Sky

  • Body Breadth:

    15 mm

  • Body Height:

    20 mm

  • Body Length or Diameter:

    15 mm

  • Mounting Feature:

    BOARD MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Range:

    5.25

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PBT

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

CS1005B Frequently Asked Questions (FAQs)

  • The CS1005B requires a well-designed PCB layout with adequate thermal management to ensure optimal performance. A minimum of 2oz copper thickness is recommended, and thermal vias should be used to dissipate heat. A heat sink or thermal pad can also be used to improve thermal performance.
  • To ensure reliable communication, use a reliable serial communication protocol such as UART or SPI, and ensure that the baud rate and data format are correctly configured. Also, use a pull-up resistor on the RX pin and a pull-down resistor on the TX pin to prevent signal floating.
  • The CS1005B can operate within a temperature range of -40°C to 85°C. However, it's recommended to operate within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • The CS1005B is not designed for use in humid or high-moisture environments. It's recommended to use a conformal coating or encapsulation to protect the device from moisture and humidity.
  • To troubleshoot issues with the CS1005B, check the power supply voltage, communication protocol, and data format. Use a logic analyzer or oscilloscope to debug the communication signals. Also, check the device's datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS1005B Overview

Use the download button to access the CS1005B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS100, or try a keyword search, such as Other Sensors/Transducers

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
