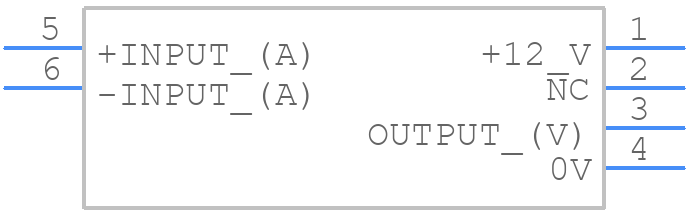

CS1012B - Same Sky

CS1012B Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the CS1012B?
  A good PCB layout for the CS1012B should ensure that the input and output traces are separated, and the device is placed away from high-frequency noise sources. A ground plane underneath the device can also help reduce electromagnetic interference (EMI).
• How do I choose the correct input and output capacitors for the CS1012B?
  The input capacitor should be a low-ESR ceramic capacitor with a value between 1-10uF, while the output capacitor should be a low-ESR electrolytic capacitor with a value between 10-100uF. The capacitor values may vary depending on the specific application and output voltage requirements.
• What is the maximum ambient temperature range for the CS1012B?
  The CS1012B can operate in an ambient temperature range of -40°C to +85°C, but the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper heat dissipation and thermal management in the system design.
• Can I use the CS1012B in a high-vibration environment?
  The CS1012B is designed to withstand moderate vibrations, but it's not suitable for extreme vibration environments. If your application requires operation in a high-vibration environment, consider using a more ruggedized DC-DC converter or taking additional measures to secure the device and PCB.
• How do I ensure electromagnetic compatibility (EMC) with the CS1012B?
  To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and consider adding a common-mode choke or ferrite bead to the input and output lines. Additionally, ensure that the system meets relevant EMC standards and regulations.
