A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between the AVDD and AGND pins to filter out noise.
Use a low-dropout linear regulator (LDO) to power the CS2000CP-DZZR. Ensure the power supply has a low ripple and noise, and that the voltage is within the recommended range of 2.7V to 3.6V. Decouple the power pins with 10uF and 100nF capacitors.
Use a crystal oscillator with a frequency of 12.288MHz or 24.576MHz. The clock input should be connected to the XIN pin, and the clock output should be connected to the XOUT pin. Ensure the clock signal is clean and has a low jitter.
Use a low-pass filter with a cutoff frequency of 1.5MHz to filter out noise and aliasing. Ensure the analog input signal is within the recommended range of 0V to 2.5V. Use the internal ADC clock or an external clock with a frequency of 2.4576MHz or 4.9152MHz.
Use a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C) to communicate with the CS2000CP-DZZR. Ensure the interface clock frequency is within the recommended range of 100kHz to 3.2MHz.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS2000CP-DZZR Overview

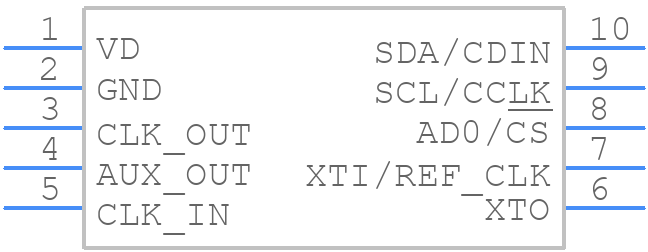

Use the download button to access the CS2000CP-DZZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS200,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
