CS2106L - COILCRAFT

Description: Current Transformers CS2106 50/60 Hz 75000uH 20A 26Ohms

Download CS2106L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CS2106L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

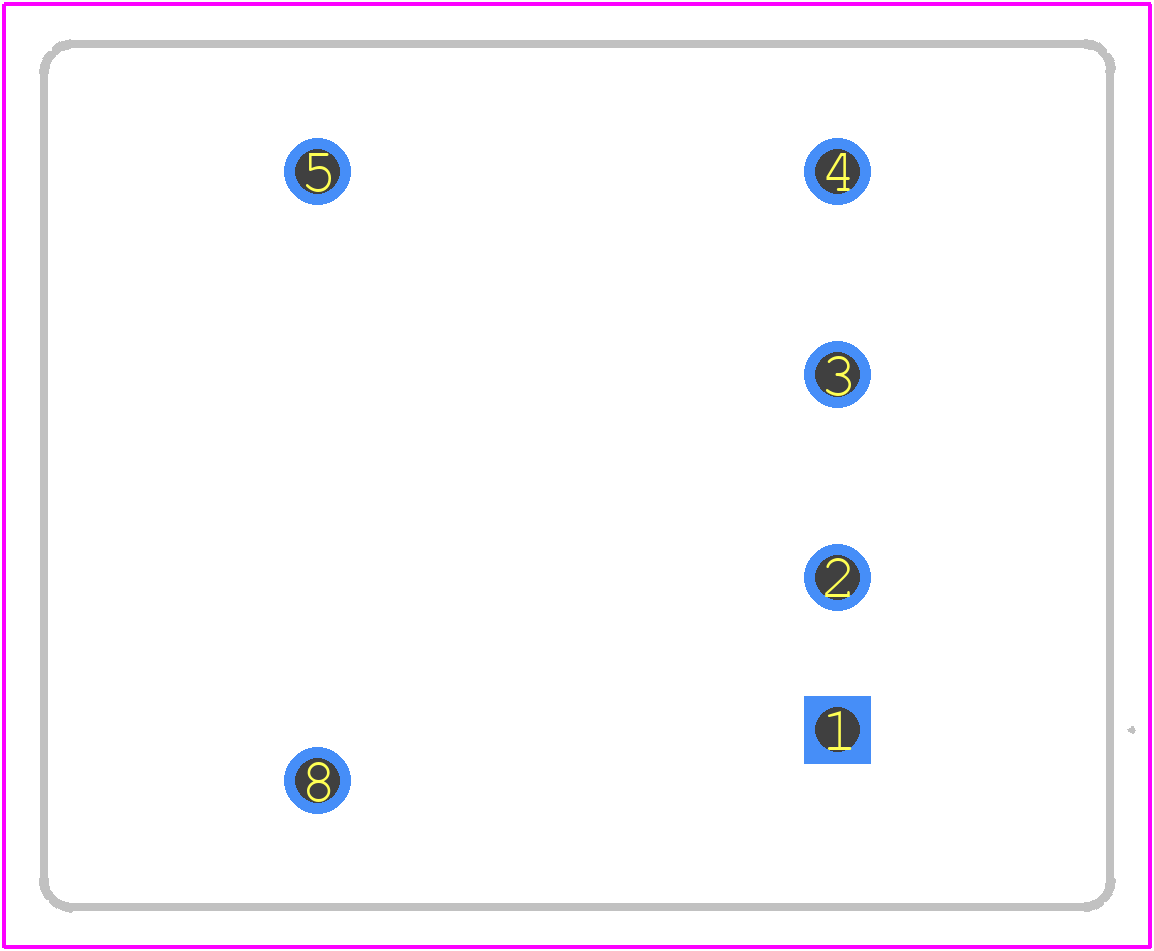

CS2106L - COILCRAFT PCB footprint - Other - Other - CS2106L-1
click to zoom
3D Models
CS2106L - COILCRAFT - 3D model - Other - CS2106L-1
click to zoom

CS2106L Details

  • Manufacturer Part Number:

    CS2106L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7

  • Height:

    18.42 mm

  • Length:

    26.67 mm

  • Load Resistance:

    26 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    0.4 kHz

  • Operating Frequency-Min:

    0.05 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Peak Primary Current:

    20 A

  • Primary Type:

    WOUND PRIMARY

  • Secondary Inductance:

    75000 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    CURRENT SENSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:500

  • Width:

    21.59 mm

  • Window Dimension:

    W21.59XH18.42 m

CS2106L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The pattern is designed to minimize thermal resistance and ensure reliable soldering.
  • To ensure the CS2106L operates within its specified temperature range, make sure to provide adequate heat sinking and airflow around the component. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance.
  • The maximum allowable voltage for the CS2106L is 50V, as specified in the datasheet. Exceeding this voltage may damage the component or affect its performance.
  • Yes, the CS2106L is designed for high-frequency applications up to 1 GHz. However, it's essential to follow proper PCB design and layout guidelines to minimize parasitic inductance and ensure optimal performance.
  • To handle the CS2106L's sensitivity to moisture, follow proper storage and handling procedures, such as storing the components in a dry, cool place, and avoiding exposure to high humidity or moisture during assembly and testing.
