CS22BNW03 - NKK Switches

CS22BNW03 Details

• Manufacturer Part Number:

  CS22BNW03

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  NKK Switches

• YTEOL:

  8

• Actuator Length:

  0.201 inch

• Actuator Material:

  GLASS FILLED POLYAMIDE

• Actuator Type:

  WIDE TYPE

• Additional Feature:

  STANDARD: UL 94V-0

• Body Breadth:

  11.8 mm

• Body Height:

  9.7 mm

• Body Length or Diameter:

  14 mm

• Center Contact Material:

  COPPER

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@125VAC

• Contact Current(AC)-Max:

  3 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  125 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  20000 Cycle(s)

• End Contact Material:

  SILVER COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  GLASS FILLED POLYAMIDE

• Illumination:

  NON ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

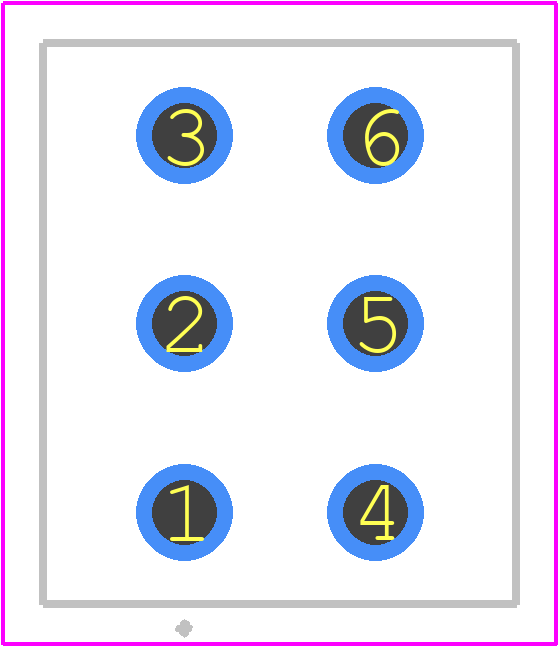

• PCB Hole Count:

  6

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  HAND/WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Finish:

  SILVER

• Terminal Length:

  0.169 inch

• Terminal Material:

  COPPER

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
