CS2300P-DZZ - Cirrus Logic

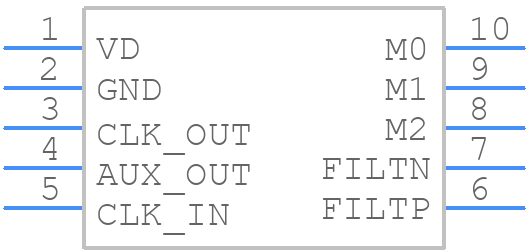

CS2300P-DZZ Details

• Manufacturer Part Number:

  CS2300P-DZZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  MSOP-10

• Pin Count:

  10

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Cirrus Logic

• YTEOL:

  0

• Analog IC - Other Type:

  PHASE LOCKED LOOP

• JESD-30 Code:

  S-PDSO-G10

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  23 mA

• Supply Voltage-Max (Vsup):

  3.5 V

• Supply Voltage-Min (Vsup):

  3.1 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  3 mm
