The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (AVCC and DVCC). This ensures proper device operation and prevents latch-up.
To optimize performance in a noisy environment, ensure proper PCB layout, use a low-ESR capacitor for power supply decoupling, and consider adding a ferrite bead or common-mode choke to filter out high-frequency noise.
The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's stability and performance.
Yes, the CS3308-CQZ can operate with a single power supply, but it's recommended to use separate power supplies for analog and digital sections to minimize noise coupling and ensure optimal performance.
To troubleshoot issues, start by verifying the power supply voltages, checking for proper device configuration, and ensuring correct signal routing. Use an oscilloscope to inspect the analog and digital signals, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS3308-CQZ Overview

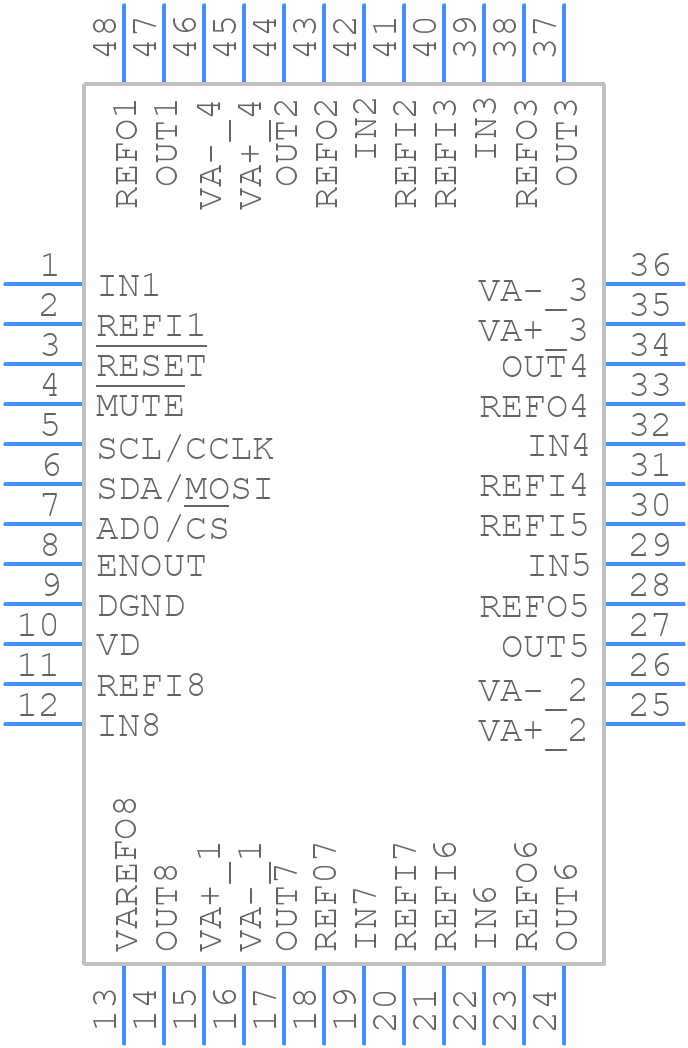

Use the download button to access the CS3308-CQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS330,
or try a keyword search, such as Audio Control ICs
