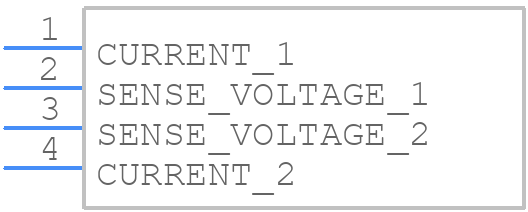

CS3FR002E - Ohmite - PCB symbol
click to zoom
PCB Footprints
CS3FR002E - Ohmite PCB footprint - Other - Other - CS3FR002E-1
click to zoom
3D Models
CS3FR002E - Ohmite - 3D model - Other - CS3FR002E-1
click to zoom

CS3FR002E Details

  • Manufacturer Part Number:

    CS3FR002E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED-4, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Austria

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    8

  • Additional Feature:

    NON-INDUCTIVE, PRECISION

  • Construction:

    Non Inductive

  • Lead Length:

    8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    16.4 mm

  • Package Length:

    21.7 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Package Width:

    5.35 mm

  • Rated Power Dissipation (P):

    3 W

  • Rated Temperature:

    70 °C

  • Resistance:

    0.002 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    8521

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    60 ppm/°C

  • Terminal Finish:

    Tin/Silver (Sn97Ag3)

  • Terminal Shape:

    FLAT

  • Tolerance:

    1%

CS3FR002E Frequently Asked Questions (FAQs)

  • The recommended mounting method for CS3FR002E is through-hole mounting, ensuring the resistor is securely fastened to the PCB to prevent thermal stress and ensure optimal performance.
  • The CS3FR002E is designed to operate in humid environments, but it's essential to follow proper storage and handling procedures to prevent moisture absorption. Ohmite recommends storing the resistors in a dry, cool place, and avoiding exposure to extreme humidity or temperature fluctuations.
  • Yes, the CS3FR002E is designed to withstand moderate vibration levels. However, it's crucial to ensure the resistor is properly secured to the PCB and that the PCB is adequately mounted to prevent excessive movement or stress on the component.
  • The maximum allowable power derating for the CS3FR002E is 70°C. It's essential to follow the recommended power derating curve to ensure the resistor operates within its specified temperature range and maintains its performance and reliability.
  • Yes, the CS3FR002E is compatible with lead-free soldering processes. Ohmite ensures that their resistors meet the requirements for lead-free soldering, making them suitable for modern PCB assembly processes.
