The recommended land pattern for the CS4200V-01L is a rectangular pad with a size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
The CS4200V-01L is rated for operation up to 125°C, but it's recommended to derate the current rating for temperatures above 85°C. Consult the datasheet for specific derating information.
To minimize magnetic field interference, keep the CS4200V-01L at least 5 mm away from other components, and consider using a magnetic shield or a mu-metal shield to contain the magnetic field.
The SRF of the CS4200V-01L is approximately 250 MHz, but this can vary depending on the specific application and PCB layout. Consult the datasheet for more information.
The CS4200V-01L is suitable for high-frequency applications up to 100 MHz, but it's essential to consider the inductor's impedance, Q factor, and SRF when designing the circuit.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4200V-01L Overview

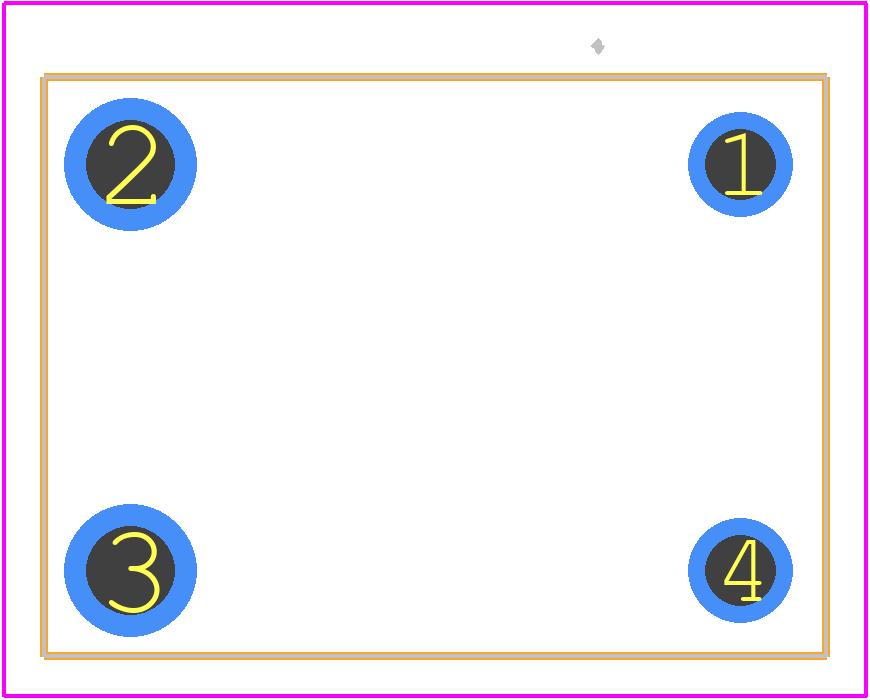

Use the download button to access the CS4200V-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS420,
or try a keyword search, such as Current Sense Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
