The recommended power-up sequence is to apply analog power (AVDD) first, followed by digital power (DVDD), and then bring the reset pin (RST) high.
To configure the CS4245-CQZ for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (0x10). Then, set the desired clock frequency using the MCLKDIV bits in the Clock Control Register.
The maximum allowed capacitance for the analog input filters is 10nF. Exceeding this value may affect the device's performance and stability.
To optimize the CS4245-CQZ for low power consumption, disable any unused features, reduce the clock frequency, and use the power-down modes (e.g., ADC power-down, DAC power-down) when not in use.
The recommended layout and routing for the CS4245-CQZ involves separating analog and digital signals, using a solid ground plane, and minimizing signal trace lengths and loops to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4245-CQZ Overview

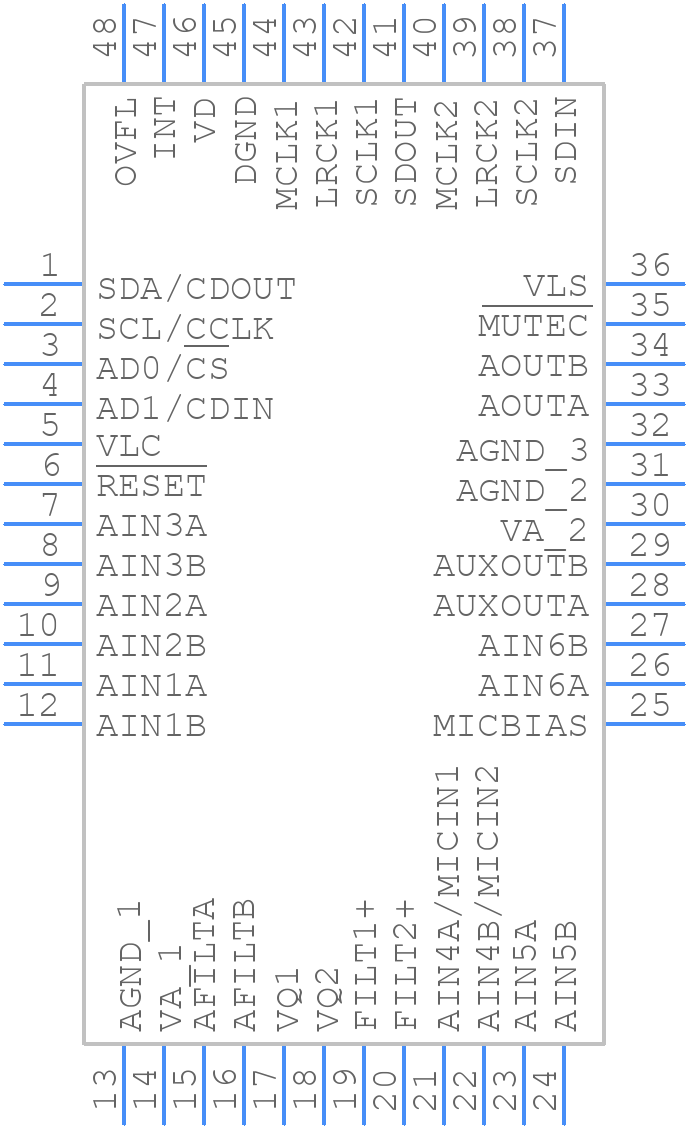

Use the download button to access the CS4245-CQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS424,
or try a keyword search, such as Codecs
