Use a 10uF capacitor in parallel with a 100nF capacitor, placed as close as possible to the power pins, to ensure proper power supply decoupling.
Set the MCLK pin to the desired clock frequency, and configure the MCLKDIV pin to select the clock divider ratio. Refer to the datasheet for specific settings.
Keep analog and digital grounds separate, and connect them at a single point, preferably near the power supply. Use a solid ground plane for the digital ground and a separate, isolated ground plane for the analog ground.
Use a low-pass filter with a cutoff frequency above 100 kHz to filter out high-frequency noise. Also, ensure the output stage is properly terminated with a 10kΩ resistor to prevent oscillations.
Use a logic analyzer or oscilloscope to monitor the I²S signals (BCLK, LRCLK, and SDIN/SDOUT). Verify the clock frequencies, data alignment, and signal integrity to identify any issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4270-CZZR Overview

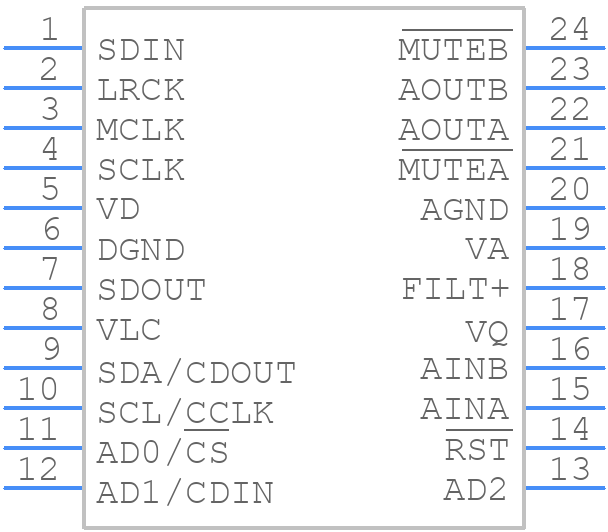

Use the download button to access the CS4270-CZZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS427,
or try a keyword search, such as Codecs
