The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper device initialization and prevents potential damage.
To configure the CS43131-CWZR for master clock mode, set the MCLK pin as the clock source, and ensure the MCLK frequency is within the specified range (10-50 MHz). Also, set the BCK pin as the bit clock output, and configure the WS pin as the word select output.
The Zero-Cross Detect (ZCD) pin is used to detect the zero-crossing point of the analog output signal, allowing for synchronized switching of external amplifiers or other devices. This helps reduce audible clicks and pops.
To optimize the CS43131-CWZR for low power consumption, use the Power Down (PDN) pin to shut down the device when not in use. Additionally, adjust the clock frequency, reduce the analog output voltage, and use the Low Power Mode (LPM) feature to minimize power consumption.
To ensure optimal performance, follow a star-grounding layout, keep analog and digital traces separate, and use a solid ground plane. Also, place decoupling capacitors close to the device, and use a low-impedance power supply to minimize noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS43131-CWZR Overview

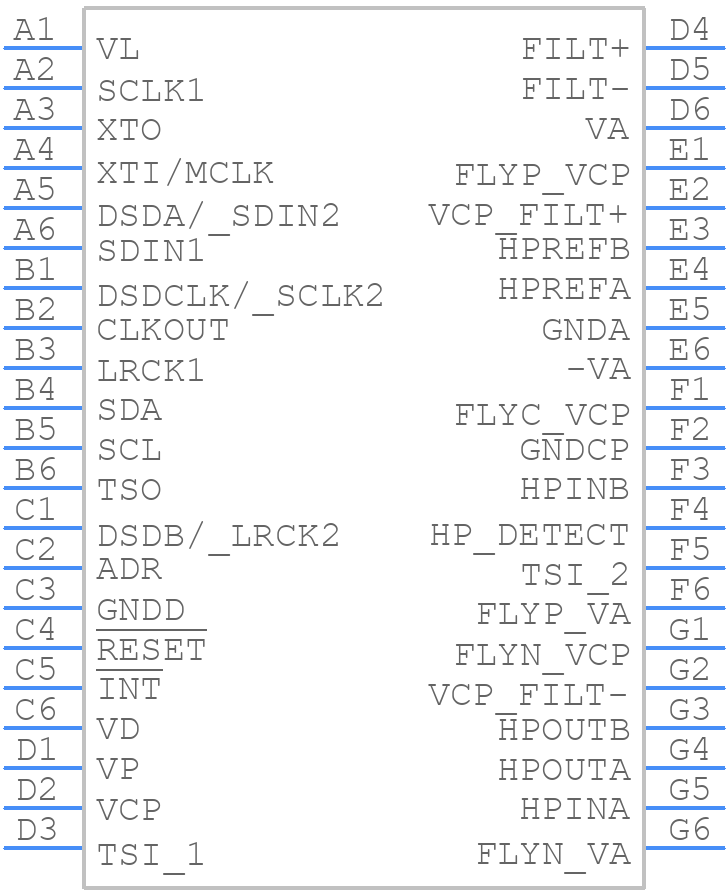

Use the download button to access the CS43131-CWZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS431,
or try a keyword search, such as Digital to Analog Converters
