The recommended power-up sequence is to apply analog power (AVDD) first, followed by digital power (DVDD), and then clock and data inputs. This ensures proper device initialization and prevents potential latch-up conditions.
To optimize analog performance, ensure that the analog power supply (AVDD) is well-regulated and decoupled, and that the analog input signals are properly terminated and filtered. Additionally, use a low-jitter clock source and ensure that the device is operated within its recommended operating conditions.
The maximum allowable clock jitter for the CS4382A-CQZ is 50 ps RMS. Exceeding this limit may result in decreased device performance and increased distortion.
To configure the CS4382A-CQZ for master clock mode, connect the MCLK pin to a stable clock source, and set the M/S pin high. Ensure that the clock frequency is within the recommended range (256 fs to 512 fs) and that the clock signal is properly terminated.
To minimize noise and ensure optimal performance, keep analog and digital signals separate, use a solid ground plane, and route clock and data signals away from analog signals. Additionally, use short, direct traces for power and ground connections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4382A-CQZ Overview

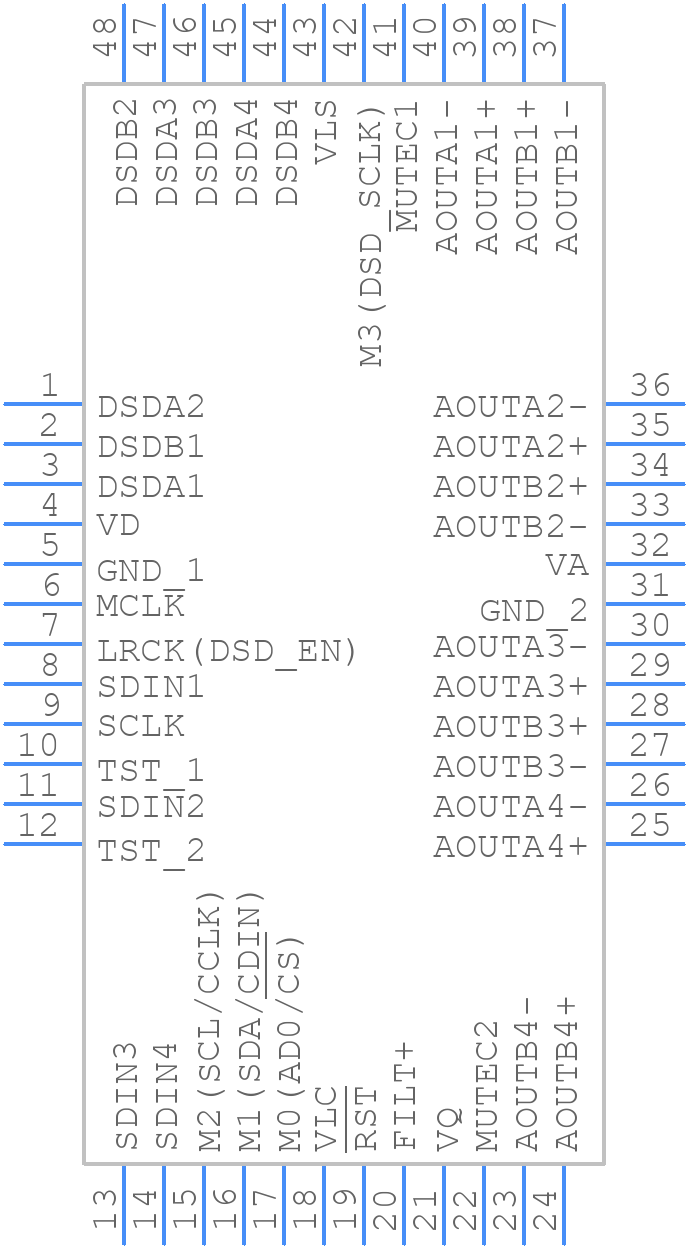

Use the download button to access the CS4382A-CQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS438,
or try a keyword search, such as Digital to Analog Converters
