The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization and prevents damage to the device.
To configure the CS4392-KZZ for master clock mode, set the MCLK pin as the clock source, and ensure that the MCLK frequency is within the specified range (256 fs to 512 fs). Also, set the BCLK pin to the desired frequency and configure the LRCLK pin accordingly.
The maximum allowed capacitance for the analog output filters is 10 nF. Exceeding this value may affect the device's performance and stability.
To optimize the CS4392-KZZ for low power consumption, use the power-down modes (e.g., PDN pin), reduce the clock frequency, and minimize the analog output load. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode.
For optimal performance, keep the analog and digital signal paths separate, use a solid ground plane, and minimize the length of the analog output traces. Also, ensure that the power supply lines are decoupled and filtered properly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS4392-KZZ Overview

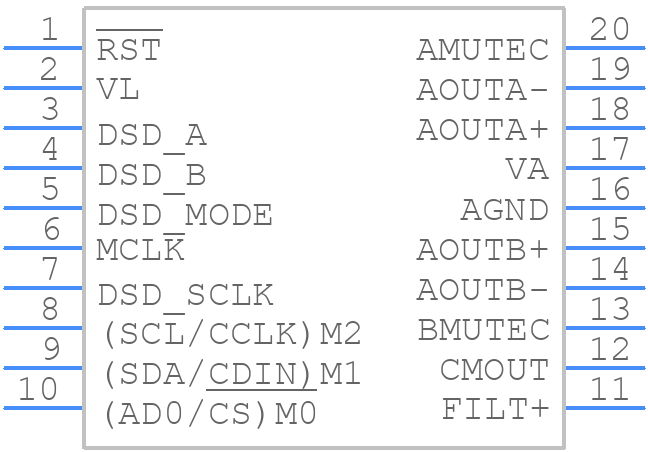

Use the download button to access the CS4392-KZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS439,
or try a keyword search, such as Digital to Analog Converters
