The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper device initialization and prevents latch-up.
To optimize analog performance, ensure that the analog and digital grounds are separated, use a low-ESR capacitor for decoupling, and keep the analog signal paths as short as possible. Additionally, use a high-quality, low-jitter clock source.
The maximum allowed capacitance on the analog input pins is 10nF. Exceeding this value may affect the device's analog performance and stability.
Yes, the CS43L21 can be used with separate analog and digital power supplies. However, ensure that the analog power supply is clean and well-regulated to prevent noise coupling into the analog circuitry.
To troubleshoot digital interface issues, verify that the clock signal is stable and within the specified frequency range. Check the digital output voltage levels and ensure they are within the specified range. Also, verify that the digital interface is properly terminated and that the signal lines are not overloaded.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS43L21-CNZ Overview

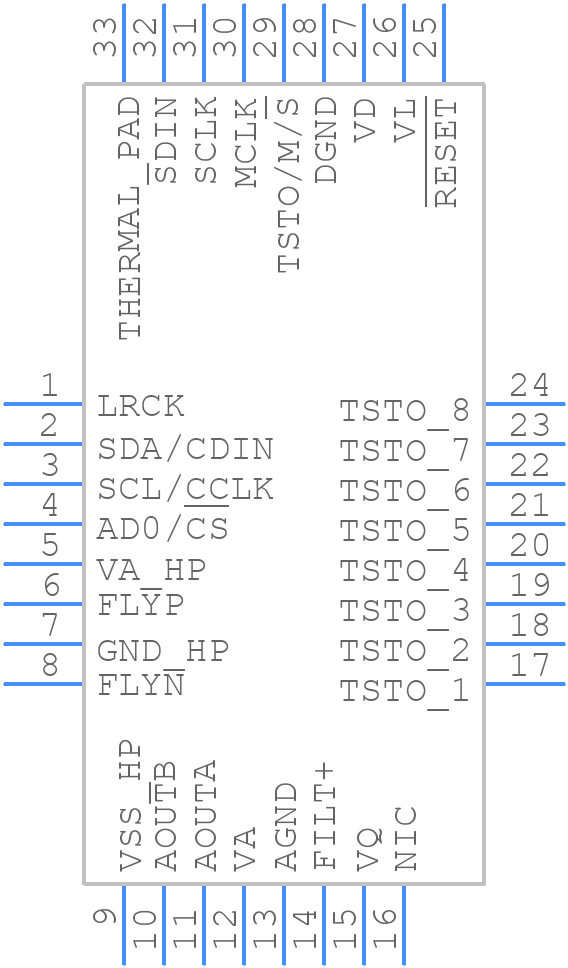

Use the download button to access the CS43L21-CNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS43L,
or try a keyword search, such as Digital to Analog Converters
