The recommended operating temperature range for the CS474 is -40°C to +85°C, although it can withstand storage temperatures from -55°C to +125°C.
To ensure reliable switching performance in high-frequency applications, it's essential to follow proper PCB layout and design guidelines, such as minimizing lead lengths, using a solid ground plane, and avoiding parallel resonance.
The maximum allowable voltage for the CS474 is 120% of the rated voltage, but it's recommended to operate within the specified voltage range to ensure reliable performance and longevity.
While the CS474 is a high-quality relay, it's essential to consult with Coto Technology USA or a qualified representative to determine its suitability for high-reliability or aerospace applications, as additional testing and certification may be required.
To prevent electrostatic discharge (ESD) damage, handle the CS474 with ESD-protective equipment, such as wrist straps, mats, and bags, and follow proper ESD handling procedures.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CS474 Overview

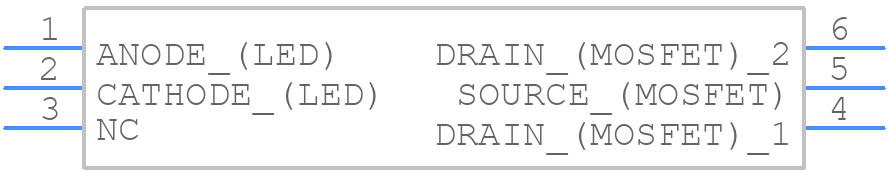

Use the download button to access the CS474 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Solid State Relays
