CS4954-CQZ footprint, schematic symbol and 3D model by Cirrus Logic

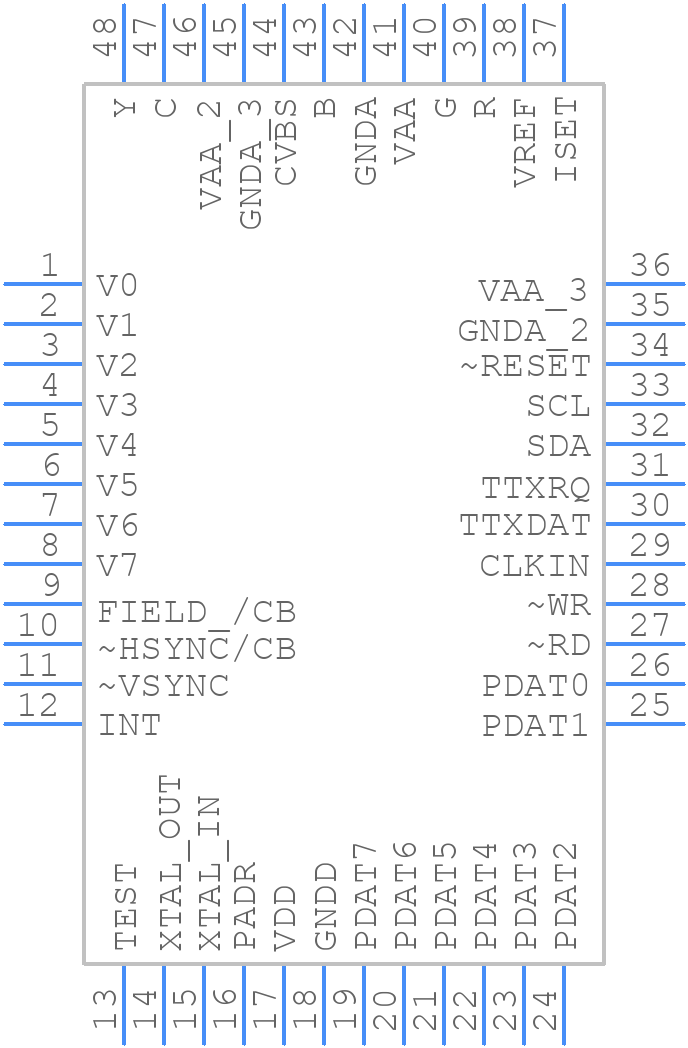

Symbol

click to zoom

PCB Footprints

CS4954-CQZ - Cirrus Logic PCB footprint - Other - Other - QFP50P900X900X160-48N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CS4954-CQZ
Part Number CS4954-CQZ
Manufacturer Cirrus Logic
Pin Count 48
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P900X900X160-48N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

CS4954-CQZ Details

Manufacturer Part Number:
CS4954-CQZ
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
QFP
Package Description:
LEAD FREE, MS-026, TQFP-48
Pin Count:
48
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Cirrus Logic
YTEOL:
0
Additional Feature:
IT CAN ALSO BE OPERATED FROM 4.75V TO 5.25V SUPPLY
Consumer IC Type:
COLOR SIGNAL ENCODER
Input Type:
R-Y; B-Y; Y
JESD-30 Code:
S-PQFP-G48
JESD-609 Code:
e3
Length:
7 mm
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFQFP
Package Equivalence Code:
QFP48,.35SQ,20
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.6 mm
Supply Current-Max:
150 mA
Supply Voltage-Max (Vsup):
3.45 V
Supply Voltage-Min (Vsup):
3.15 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Video Standard:
PAL; NTSC
Width:
7 mm

CS4954-CQZ Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (AVCC and DVCC). This ensures proper device operation and prevents latch-up.
To optimize performance in a noisy environment, ensure proper grounding and shielding of the device, use a low-pass filter on the analog input, and consider using a ferrite bead or common-mode choke on the power supply lines.
The maximum allowed capacitance on the analog input pins is 10nF. Exceeding this value may affect the device's performance and stability.
Yes, the CS4954-CQZ can be used with separate analog and digital power supplies. However, ensure that the analog power supply (AVCC) is decoupled from the digital power supply (DVCC) using a ferrite bead or inductor to prevent noise coupling.
The recommended layout and routing for the CS4954-CQZ involves keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths and vias. Refer to the datasheet for more detailed guidelines.
