The recommended layout and routing for the CS5480-INZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also important to keep the power supply decoupling capacitors close to the device.
To optimize the performance of the CS5480-INZ in noisy environments, use a low-pass filter on the input signals, ensure good power supply decoupling, and use shielding to minimize electromagnetic interference (EMI). Additionally, consider using a common-mode filter on the input signals.
The recommended power-up sequence for the CS5480-INZ is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up.
To troubleshoot issues with the CS5480-INZ, start by checking the power supply voltages, clock signal, and input signals. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. Also, review the device's configuration and programming to ensure that it is set up correctly.
The maximum operating temperature range for the CS5480-INZ is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5480-INZ Overview

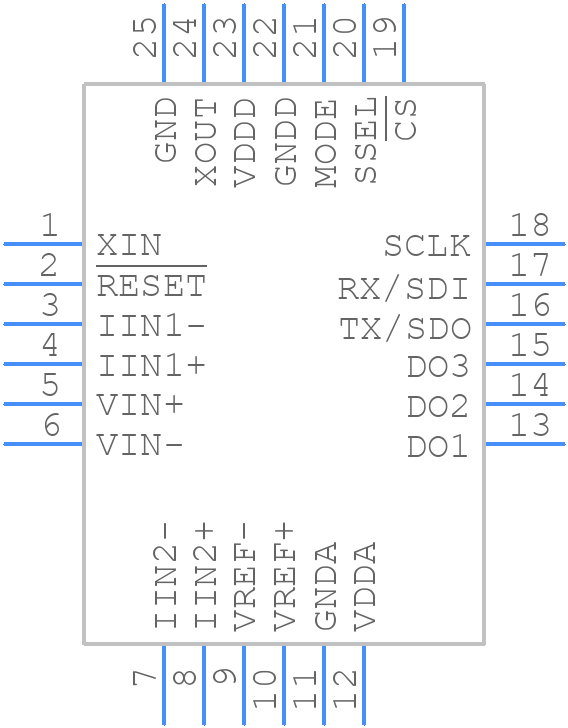

Use the download button to access the CS5480-INZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS548,
or try a keyword search, such as Other Signal Circuits
