CSE186L - Triad Magnetics

Description: Current Transformers Current Sense Transformer, Low Frequency, 2 mohm (max. Primary) / 23 mohm (max. Secondary) DC Resistance, 166 (Ratio) Turns, Open Frame Construction

Download CSE186L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

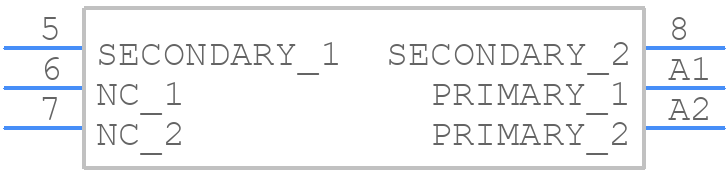

CSE186L - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

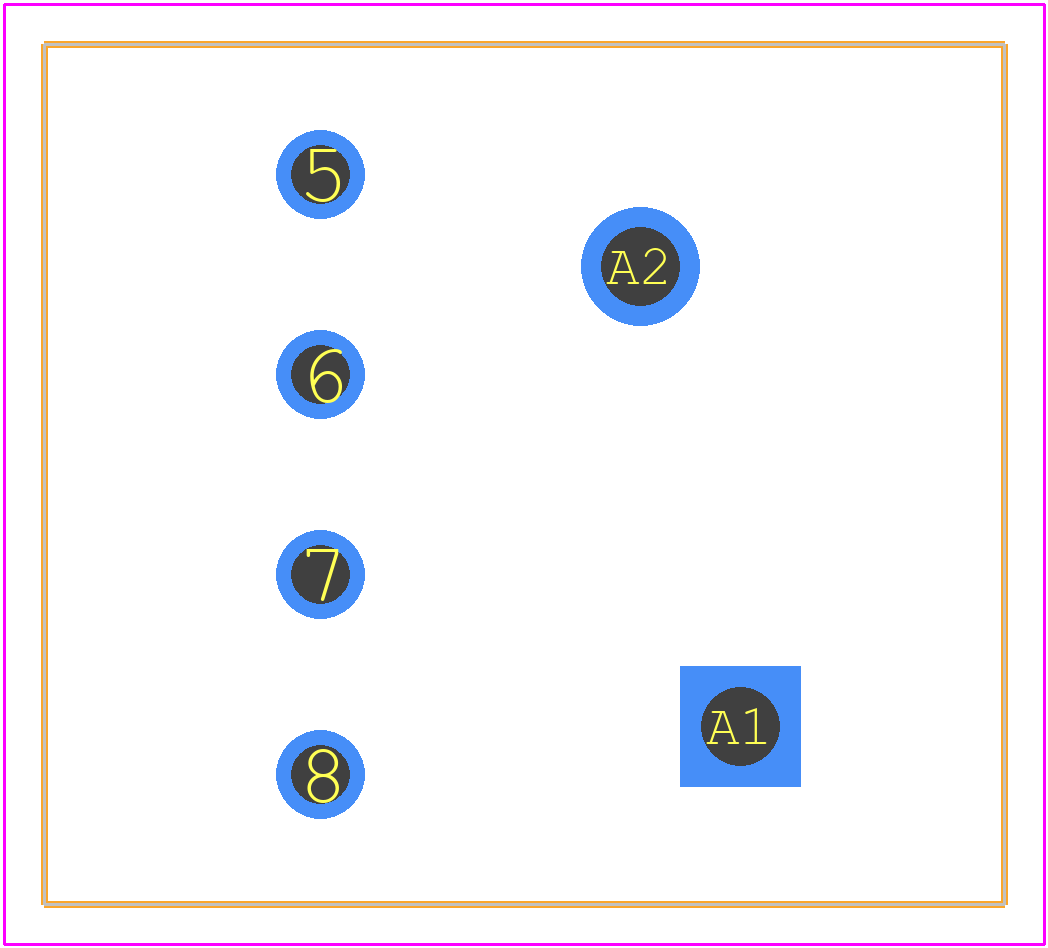

CSE186L - Triad Magnetics PCB footprint - Other - Other - CSE186L-1
click to zoom
3D Models
CSE186L - Triad Magnetics - 3D model - Other - CSE186L-1
click to zoom

CSE186L Details

  • Manufacturer Part Number:

    CSE186L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    8

  • Application:

    POWER

  • Approvals:

    UL

  • ET Product-Min:

    30000 V-us

  • Height:

    18 mm

  • Input Voltage-Max:

    240 V

  • Isolation Voltage:

    2500 V

  • Length:

    24 mm

  • Load Resistance:

    0.023 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    0.4 kHz

  • Operating Frequency-Min:

    0.05 kHz

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Voltage 1:

    4 V

  • Primary Type:

    WOUND PRIMARY

  • Surface Mount:

    NO

  • Transformer Type:

    CURRENT SENSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:166

  • Width:

    21.5 mm

CSE186L Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CSE186L is -40°C to 125°C, although the datasheet only mentions a storage temperature range.
  • Triad Magnetics provides UL and CE certifications for the CSE186L. Ensure you purchase from an authorized distributor and verify the certification marks on the product.
  • Triad Magnetics recommends a maximum voltage imbalance of 10% between the primary and secondary windings to ensure reliable operation and prevent overheating.
  • While the CSE186L is designed for 50/60 Hz operation, it can be used in high-frequency applications up to 100 kHz with proper design considerations and derating.
  • Use the following formula: Power (VA) = (Primary Voltage x Primary Current) / (1 - (Primary Inductance / Secondary Inductance)). Consult the datasheet for specific values.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSE186L Overview

Use the download button to access the CSE186L schematic symbol, PCB footprint, and 3D model.
