CSE187L-P - Triad Magnetics

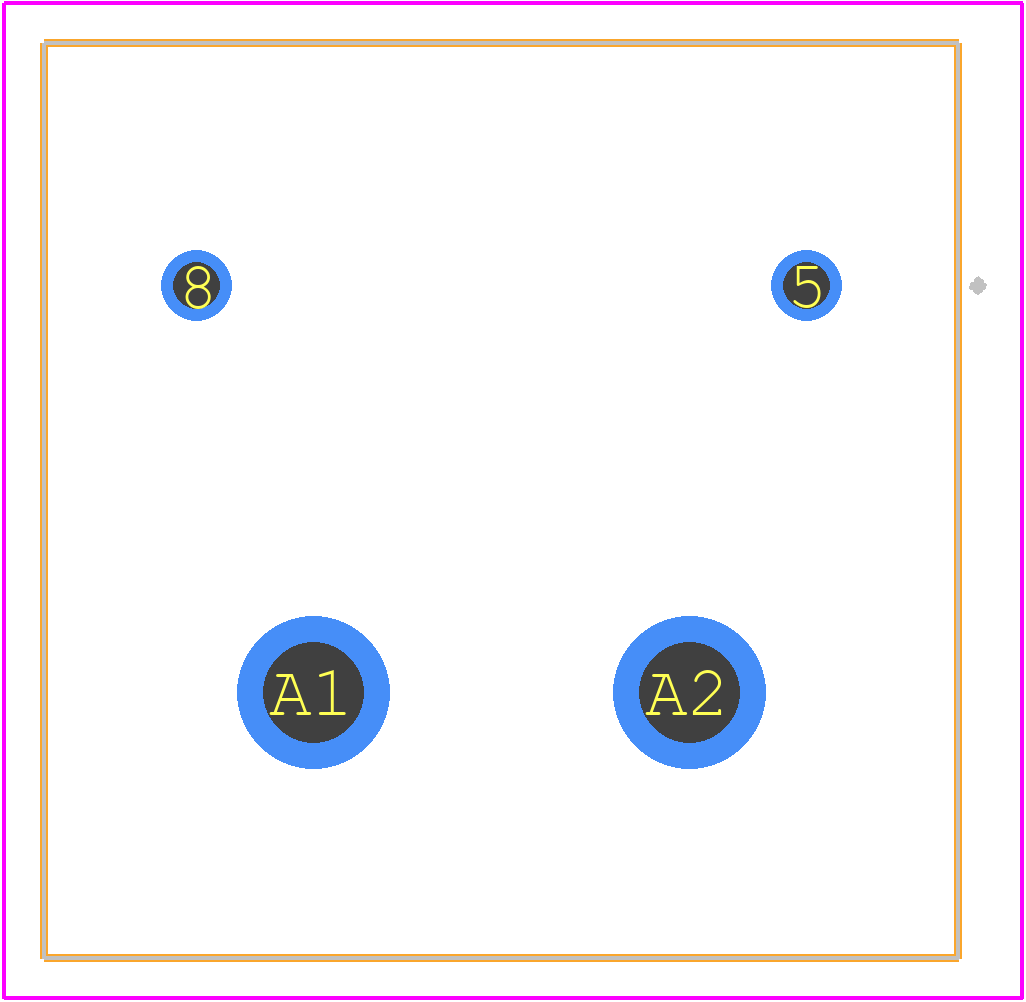

CSE187L-P Details

• Manufacturer Part Number:

  CSE187L-P

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• Manufacturer:

  Triad Magnetics

• YTEOL:

  7

• Application:

  SIGNAL

• Approvals:

  UL

• Height:

  18.29 mm

• Input Voltage-Max:

  240 V

• Isolation Voltage:

  4000 V

• Length:

  22.22 mm

• Load Resistance:

  21 Ω

• Mounting Feature:

  THROUGH HOLE MOUNTED

• Number of Primary Winding:

  1

• Number of Secondary Winding:

  1

• Operating Frequency-Max:

  0.4 kHz

• Operating Frequency-Min:

  0.05 kHz

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current 1:

  30 A

• Output Current 2:

  0.1 A

• Output Voltage 1:

  4 V

• Output Voltage 2:

  0.11 V

• Peak Primary Current:

  30 A

• Primary Type:

  WOUND PRIMARY

• Surface Mount:

  NO

• Transformer Type:

  CURRENT SENSE TRANSFORMER

• Turns Ratio (Np:Ns):

  1:500

• Width:

  22.22 mm
