CSHS-EFD25-1S-12P - Yageo Group

Description: Supplier Device Package EFD 25 x 13 x 9 Area product Ae x Aw (mm4) 2260 , Winding AREA (mm2) 39.0

Download CSHS-EFD25-1S-12P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CSHS-EFD25-1S-12P model

Email notifications will be applied after download.

Send part feedback

Symbol

CSHS-EFD25-1S-12P - Yageo Group - PCB symbol

PCB Footprints

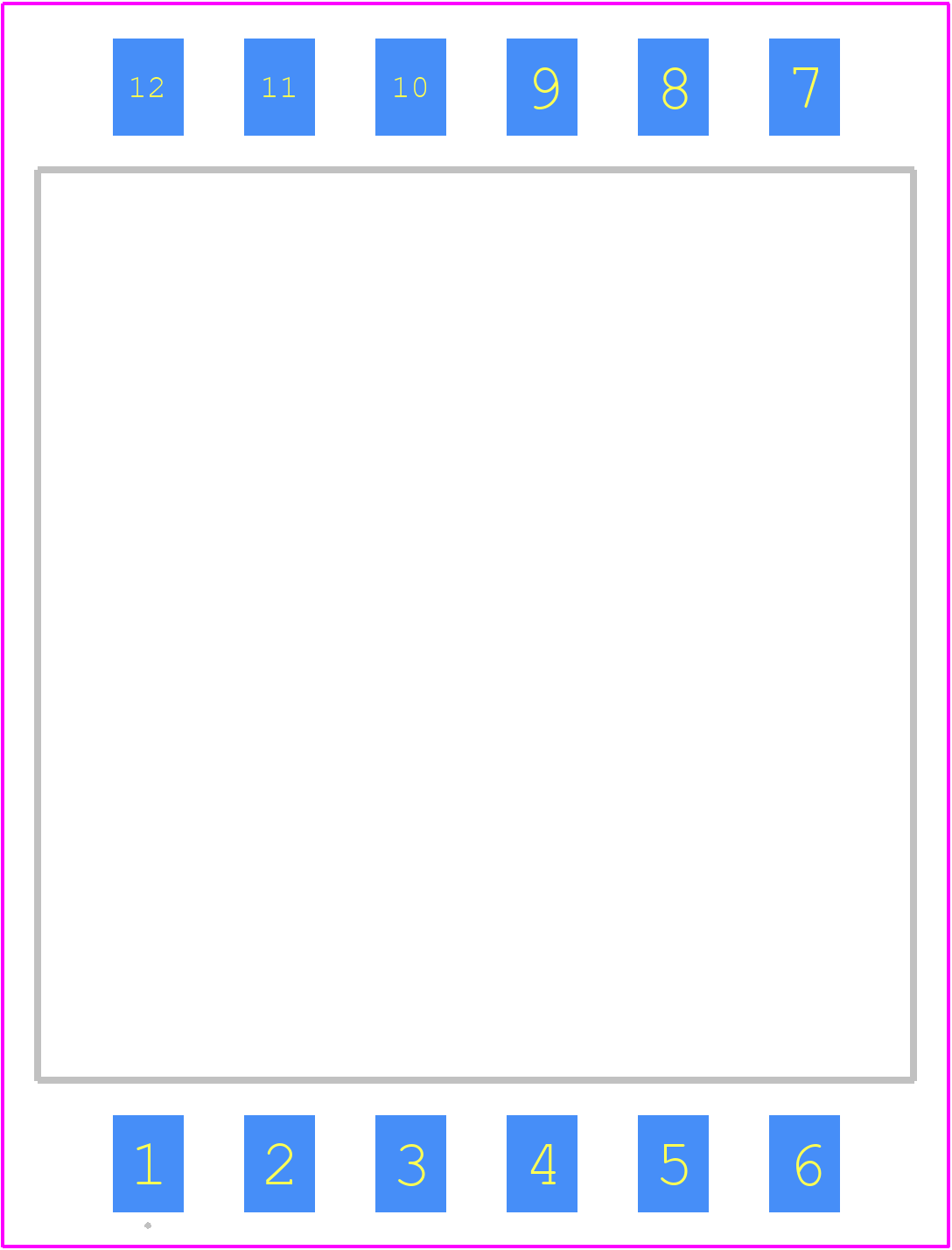

CSHS-EFD25-1S-12P - Yageo Group PCB footprint - Other - Other - CSHS-EFD25-1S-12P-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for CSHS-EFD25-1S-12P
Part Number CSHS-EFD25-1S-12P
Manufacturer Yageo Group
Pin Count 12
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - CSHS-EFD25-1S-12P-1
Released Date Dec 10, 2025
Last Modified Date Feb 4, 2026 2:20 PM UTC
Pinout / Pin List Click Here (Member Only)

CSHS-EFD25-1S-12P Details

Manufacturer Part Number:
CSHS-EFD25-1S-12P
Manufacturer:
YAGEO Corporation
