Qualcomm provides a recommended PCB layout guide for the CSR1010A05-IQQM-R, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The CSR1010A05-IQQM-R can be configured for BLE applications using Qualcomm's Bluetooth Low Energy (BLE) software development kit (SDK), which provides a set of APIs and tools for developing BLE-enabled devices.
The maximum transmit power of the CSR1010A05-IQQM-R is +10 dBm, which is adjustable through software configuration to comply with regional regulatory requirements.
Qualcomm provides a secure boot and firmware update mechanism for the CSR1010A05-IQQM-R, which includes cryptographic authentication and encryption to ensure the integrity and confidentiality of firmware updates.
The power consumption of the CSR1010A05-IQQM-R varies depending on the operating mode, with typical values ranging from 5 mA in idle mode to 50 mA in transmit mode. Qualcomm provides detailed power consumption data in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CSR1010A05-IQQM-R Overview

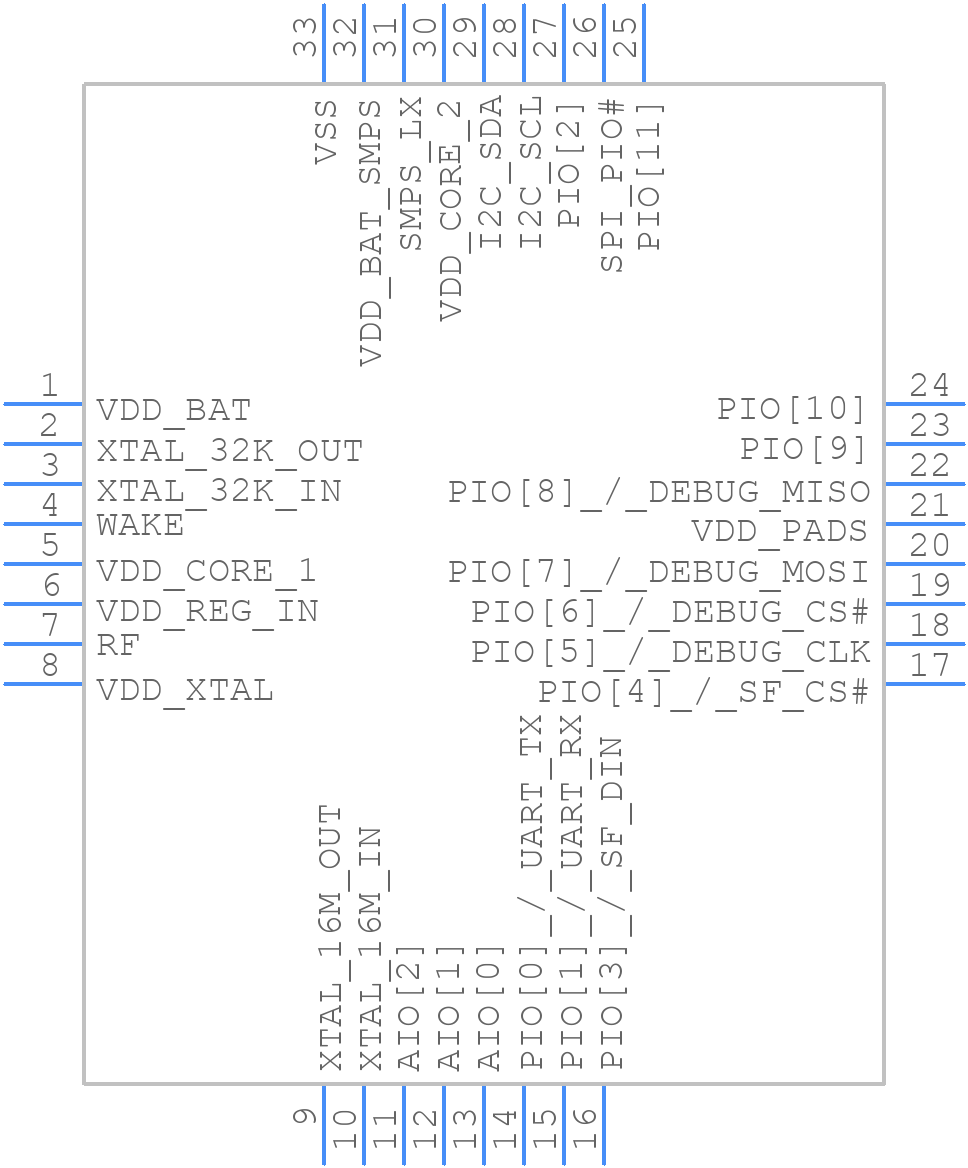

Use the download button to access the CSR1010A05-IQQM-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSR10,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
