CST-1015 - Triad Magnetics

Description: Current Transformers CURRENT SENSE TRANSFORMER, PRIMARY CURRENT: 15 AMPS

Download CST-1015 Model

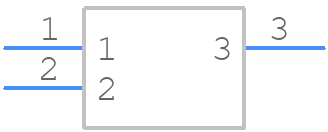

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

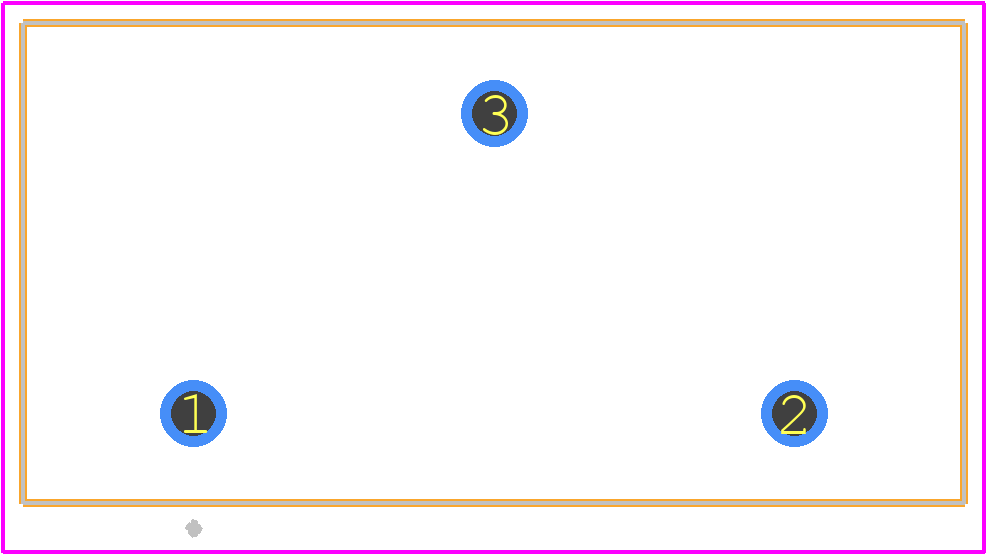

PCB Footprints
CST-1015 - Triad Magnetics PCB footprint - Other - Other - CST-1015-1
click to zoom
3D Models
CST-1015 - Triad Magnetics  - 3D model - Other - CST-1015-1
click to zoom

CST-1015 Details

  • Manufacturer Part Number:

    CST-1015

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    SIGNAL

  • DC Unbalance Current-Max:

    15000 mA

  • Height:

    24.8 mm

  • Length:

    23.5 mm

  • Load Resistance:

    100 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    0.06 kHz

  • Operating Frequency-Min:

    0.05 kHz

  • Peak Primary Current:

    15 A

  • Primary Type:

    BAR PRIMARY

  • Surface Mount:

    NO

  • Transformer Type:

    CURRENT SENSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1000:1

  • Width:

    12 mm

CST-1015 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CST-1015 is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 125°C.
  • To ensure proper PCB layout and spacing, follow the recommended footprint and pad layout provided in the datasheet, and maintain a minimum clearance of 0.5 mm between the transformer and other components.
  • Yes, CST-1015 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and securing of the transformer.
  • To minimize EMI and RFI emissions, use proper shielding, grounding, and filtering techniques, and follow the manufacturer's recommendations for layout and component placement.
  • The maximum allowable voltage imbalance between the primary and secondary windings is ±10% to ensure reliable operation and prevent damage to the transformer.
